Boky Torolàlana momba ny Fantsona Tail MBRP GP010

Sava lalana

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your MBRP GP010 Tail Pipe. Please read these instructions thoroughly before proceeding with installation or use.

The MBRP GP010 Tail Pipe is designed as a component for building custom exhaust systems, offering high quality and value. It is intended for use in automotive exhaust applications.

Image: The MBRP GP010 Tail Pipe, a standalone curved metal exhaust component.

Image: MBRP's 'ARMOR LITE' material, highlighting its durability for dry conditions.

Fametrahana sy fametrahana

The MBRP GP010 Tail Pipe is a component designed for custom exhaust system fabrication. While listed as 'Bolt-On' in some specifications, proper installation typically requires welding to integrate it into your vehicle's exhaust system and to attach custom hangers for secure mounting. Professional installation is highly recommended.

Fiarovana Voalohany

• Always disconnect the vehicle's battery before starting any work.
• Ensure the exhaust system is completely cool to prevent burns.
• Manaova fitaovana fiarovana manokana sahaza, anisan'izany ny solomaso fiarovana, fonon-tanana ary fiarovana amin'ny sofina.
• Work in a well-ventilated area and use jack stands to securely support the vehicle.

Fitaovana sy fitaovana ilaina

• Welding equipment (MIG/TIG welder, welding helmet, gloves)
• Cutting tools (e.g., reciprocating saw, angle grinder)
• Measuring tape and marking tools
• Fiakarana fiara na jack stand
• Wrenches and sockets (if removing existing components)
• Setroka clamps (optional, for temporary fitting)
• Material for custom hangers (e.g., steel rod)

Dingana fametrahana

1. Manomana fiara: Safely lift and secure the vehicle. If replacing an existing tail pipe, carefully remove the old component.
2. Position Tail Pipe: Temporarily position the MBRP GP010 Tail Pipe to determine the optimal routing and required cuts for integration with your vehicle's exhaust system. This pipe is designed to be part of a custom build.
3. Cut and Fit: Make necessary cuts to the GP010 tail pipe and/or existing exhaust components to achieve the desired fit and alignment.
4. Weld Connections: Securely weld the GP010 tail pipe into the exhaust system. Ensure all welds are strong and airtight to prevent exhaust leaks.
5. Fabricate and Weld Hangers: Custom hangers will need to be fabricated and welded to the tail pipe and vehicle frame to provide adequate support and prevent rattling or movement.
6. Fanaraha-maso farany: After welding, allow the system to cool. Inspect all welds for integrity and check for any exhaust leaks. Ensure the tail pipe has sufficient clearance from all vehicle components.

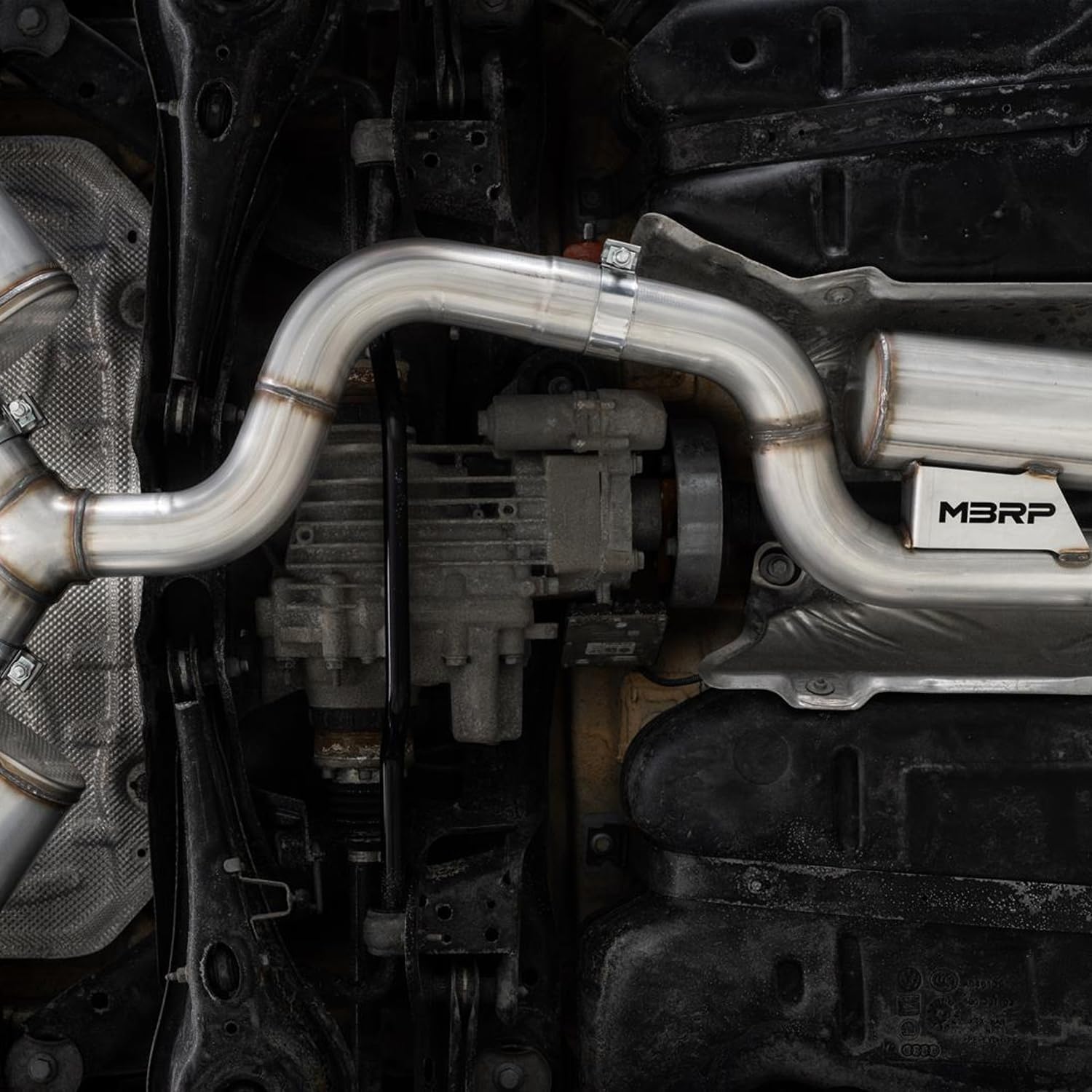

Image: An MBRP exhaust system, including a tail pipe, installed on a vehicle chassis.

Torolàlana miasa

Once installed, the MBRP GP010 Tail Pipe operates as an integral part of your vehicle's exhaust system. No specific operational steps are required beyond normal vehicle use.

After installation, it is advisable to listen for any unusual noises, such as rattling or hissing, which could indicate a loose connection or an exhaust leak. If any such noises are detected, refer to the troubleshooting section.

fikarakarana

Regular maintenance helps ensure the longevity and optimal performance of your MBRP GP010 Tail Pipe.

• Fanaraha-maso tsy tapaka: Periodically inspect the tail pipe for signs of corrosion, cracks, or damage, especially after driving in harsh conditions (e.g., salted roads, off-road).
• Fanadiovana: Clean the exterior of the tail pipe with appropriate automotive cleaning products to maintain its appearance. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Fanamarinana fifandraisana: Ensure all welded connections and any other fasteners remain secure. Loose connections can lead to exhaust leaks or rattling.

Fanamboarana

If you encounter any issues with your MBRP GP010 Tail Pipe, consider the following troubleshooting steps:

• Tabataba mitabataba: This often indicates a loose hanger or contact with other vehicle components. Check all hangers and mounting points. Adjust or reinforce hangers as needed to ensure the pipe is securely suspended and has adequate clearance.
• Hissing or Blowing Sound: This is a common sign of an exhaust leak. Inspect all welds and connections for small cracks or gaps. Exhaust leaks can affect engine performance and fuel efficiency. Professional repair may be required to re-weld or seal the leak.
• Fihovitrovitra be loatra: Verify that the tail pipe is securely mounted and not contacting the vehicle frame, body, or other exhaust components. Ensure hangers are properly installed and absorbing vibrations.
• fofona tsy mahazatra: A strong exhaust smell inside the vehicle can indicate a significant exhaust leak. Immediately investigate and repair any leaks to prevent harmful fumes from entering the cabin.

If these steps do not resolve the issue, it is recommended to consult with a certified automotive technician.

fepetra arahana

Image: The MBRP GP010 Tail Pipe, highlighting its 4-inch tubing diameter.

Warranty sy fanohanana

For detailed warranty information regarding your MBRP GP010 Tail Pipe, please refer to the official MBRP website or contact MBRP customer support directly. Warranty terms and conditions may vary.

For technical assistance, installation guidance, or any other inquiries, please visit the official MBRP website or consult with a certified automotive technician specializing in exhaust systems.
