This manual provides detailed instructions for the installation, operation, and maintenance of your Moen Brantford Chrome Two-Handle Low-Arc Traditional Centerset Bathroom Faucet with Drain Assembly, Model 6610. Designed for durability and ease of use, this faucet offers a refined, traditional look for your bathroom.

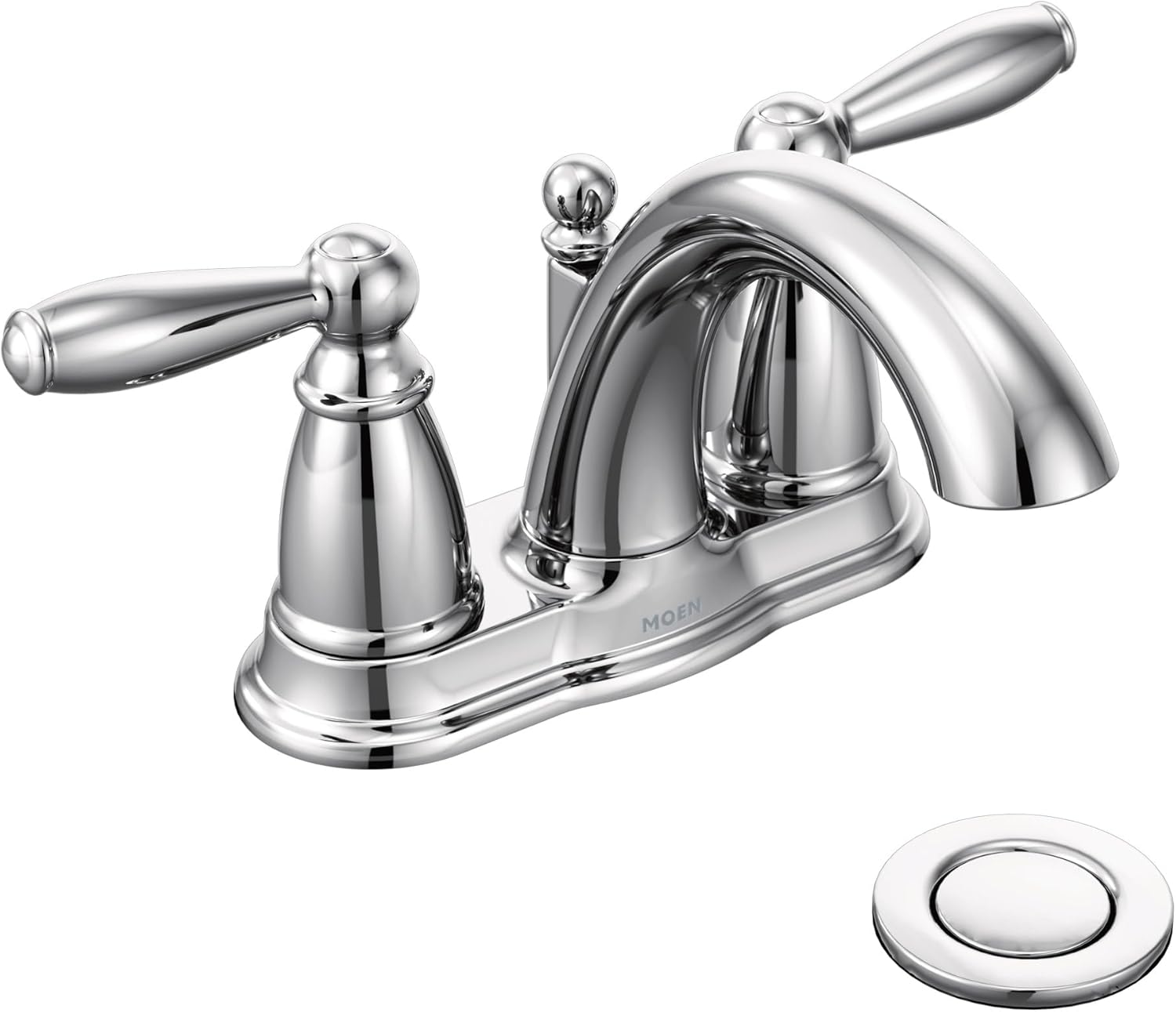

Image: Moen Brantford Chrome Two-Handle Low-Arc Centerset Bathroom Faucet, showcasing its design and finish.
Endri-javatra fototra
- Fialam-boly isan'andro: Aerated flow is ideal for daily bathroom tasks, such as brushing teeth and washing hands. Two-handle lever handles allow for easy adjustment of water temperature and flow.
- Design isan-karazany: Chrome finish provides a highly reflective, mirror-like look that complements various decorating styles.
- Mora apetraka: Features a 4-inch centerset design for straightforward installation.
- Fanangonana Fandrindrana: Designed to coordinate with other faucets and accessories within the Brantford collection.
- Certified Safe: Complies with the Federal Safe Drinking Water Act and NSF 61 standards, ensuring clean drinking water.
- Mifanaraka amin'ny ADA: Meets Americans with Disabilities Act (ADA) specifications for accessibility.
- Voamarina WaterSense: Meets WaterSense criteria for water efficiency without sacrificing water pressure.
- Naorina haharitra: Backed by Moen's Limited Lifetime Warranty.
Image: Moen WaterSense certification logo, indicating water conservation compliance.
Inona no tafiditra
Your Moen Brantford Faucet package includes the following components:
- Moen Brantford Two-Handle Low-Arc Centerset Bathroom Faucet
- Fivoriambe
Note: Supply lines are not included and must be purchased separately.
fepetra arahana
| endri-javatra | antsipirihany |
|---|---|
| Marika | Moen |
| Anarana modely | Brantford |
| Laharana modely | 6610 |
| Karazana vita | Chrome |
| KEVITRA | Metal |
| Isan'ny tantana | 2 |
| Karazana fametrahana | Deck Mount |
| Karazana fametrahana | Centerset |
| Isan'ny lavaka | 3 |
| Spout Height | 5 santimetatra |
| Spout Reach | 5.06 santimetatra |
| Taham-pidirana ambony indrindra | 1.2 galona isa-minitra |
| Certification | ADA, EPA WaterSense, NSF 61 |
| Lanja entana | 2.11 ounces (0.06 kilao) |
| Ny refin'ny vokatra | 5.06" D x 10" W x 5" H |
Image: Detailed dimensions of the Moen Brantford Faucet, including spout reach and height.
Fametrahana sy fametrahana
The Moen Brantford Faucet is designed for easy installation with its 4-inch centerset configuration. Follow these general steps for installation. For detailed, step-by-step instructions, please refer to the included installation guide in your product packaging.
- Omano ny lavenona (Prepare the Sink): Ensure your bathroom sink has a minimum deck thickness of 5/16 inch (8mm) and a maximum of 3/4 inch (20mm). Clean the faucet mounting area thoroughly.
- Mametraka ny paompy: Place the faucet body onto the sink deck, aligning the holes. Secure it from underneath the sink using the provided mounting hardware.
- Mampifandray tsipika famatsian-drano: Attach the hot and cold water supply lines (not included) to the corresponding inlets on the faucet and to your home's water supply. Ensure all connections are tight to prevent leaks.
- Install the Drain Assembly: Follow the instructions for installing the included drain assembly into the sink drain hole. Connect the drain lift rod to the faucet's lift rod mechanism.
- Fitsapana ho an'ny leak: Turn on the water supply and check all connections for any leaks. Operate both hot and cold handles to ensure proper water flow and temperature mixing.
Amporisihina ny fametrahana azy amin'ny alalan'ny matihanina raha tsy mahazatra anao ny fomba fiasa amin'ny fantson-drano.
hetsika
Operating your Moen Brantford Faucet is straightforward:
- Fikorianan'ny rano: The two lever handles control the water flow. Turn the left handle for hot water and the right handle for cold water.
- Fanaraha-maso ny maripana: Adjust the water temperature by mixing hot and cold water using both handles.
- Renin-drano misy rivotra: The faucet provides an aerated stream, which is efficient for everyday tasks like washing hands and brushing teeth.
- Drain Stopper: Use the lift rod located behind the faucet spout to open and close the drain stopper.
Image: Moen Brantford Faucet in operation, demonstrating water flow.
Fikojakojana sy fikarakarana
To keep your Moen Brantford Faucet looking and performing its best, follow these maintenance tips:
- Fanadiovana: Diovy tsy tapaka amin'ny lamba malefaka ny chromeamp lamba sy savony malefaka. Fadio ny mpanadio mikikitra, ny akora simika mahery vaika, na ny lamba fikosehana, satria mety hanimba ny endriny ireo.
- Fingerprint Resistance: The chrome finish is designed to be highly reflective and easy to clean, minimizing visible fingerprints.
- Aerator Maintenance: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the spout, clean any debris, and reattach it.
- Fisorohana ny leak: Periodically check all connections for tightness to prevent leaks.
Image: Close-up of the faucet's aerated stream, highlighting its efficiency for daily cleaning tasks.
Fanamboarana
Ireto misy vahaolana amin'ny olana mahazatra mety hanjo anao:
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Iva ny rano | Aerator tsentsina na valva fanakatonana mihidy ampahany. | Clean the aerator. Ensure hot and cold shut-off valves under the sink are fully open. |
| Mipoitra avy amin'ny Spout | Worn-out cartridge or seals. | Contact Moen customer support for replacement parts or service. |
| Mitete avy amin'ny Base | Loose mounting nuts or damaged O-rings. | Tighten mounting nuts. Inspect and replace O-rings if damaged. |
| Sarotra ny manitsy ny maripana | Faulty cartridge or mineral buildup. | Flush water lines. If issue persists, replace cartridge. |
For further assistance, please contact Moen customer support.
Warranty sy fanohanana
The Moen Brantford Faucet (Model 6610) is backed by Moen's Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser. For specific details regarding warranty coverage, claims, or to access customer support, please visit the official Moen webtranokala na mifandray amin'ny departemantan'ny serivisy mpanjifany.
Moen Official Webtranokala: www.moen.com
For technical assistance or to order replacement parts, please have your model number (6610) and purchase date available.
