Atlas Sound AA120 120 Watt Six Input Mixer AmpManual ho an'ny mpampiasa lifier

1. Fampidirana

The Atlas Sound AA120 is a 120-watt, six-input mixer amplifier designed for commercial audio applications. It features five microphone/line inputs with phantom power, one stereo summing auxiliary input, and versatile output options including 8-ohm, 25V, 70V, and 100V speaker outputs. This manual provides detailed instructions for the proper installation, operation, and maintenance of your AA120 mixer ampLifer.

2. Torolàlana manan-danja momba ny fiarovana

• Vakio ny toromarika: Vakio sy fantaro ny torolàlana momba ny fiarovana sy ny fampiasana rehetra alohan'ny hampiasana ity vokatra ity.
• Mitazona torolalana: Tehirizo ireto toromarika ireto mba hojerena amin'ny ho avy.
• Tandremo ny fampitandremana: Tandremo ny fampitandremana rehetra momba ny vokatra sy ao amin'ny torolàlana fampandehanana.
• Araho ny toromarika: Araho ny torolàlana momba ny fampiasana sy ny fampiasana rehetra.
• Rano sy hamandoana: Aza mampiasa ity fitaovana ity eo akaikin'ny rano.
• Fanadiovana: Diovy amin'ny lamba maina ihany.
• rivotra: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Ensure adequate airflow around the unit.
• hafanana: Aza apetraka eo akaikin'ny loharanon'ny hafanana toy ny radiatera, rejistra hafanana, fatana, na fitaovana hafa (anisan'izany amplifiers) izay mamokatra hafanana.
• Fiarovana tady herinaratra: Arovy ny tadin-jiro mba tsy ho voahitsakitsaka na voatsindrona, indrindra eo amin'ny plugs, ny fitoeran'entana mora, ary ny toerana hivoahana amin'ny fitaovana.
• Serivisy: Alefaso amin'ny mpiasan'ny serivisy mahafeno fepetra ny serivisy rehetra. Ilaina ny serivisy rehefa simba amin'ny fomba rehetra ny fitaovana, toy ny tadin'ny famatsiana herinaratra na ny plug, simba ny ranon-javatra na ny zavatra nianjera tao amin'ny fitaovana, niharan'ny orana na ny hamandoana ny fitaovana, tsy mandeha ara-dalàna. , na efa nariana.

3. Ny tontonana aorianaview

The rear panel of the Atlas Sound AA120 provides all necessary connections for power, inputs, and speaker outputs. Familiarize yourself with these connections before installation.

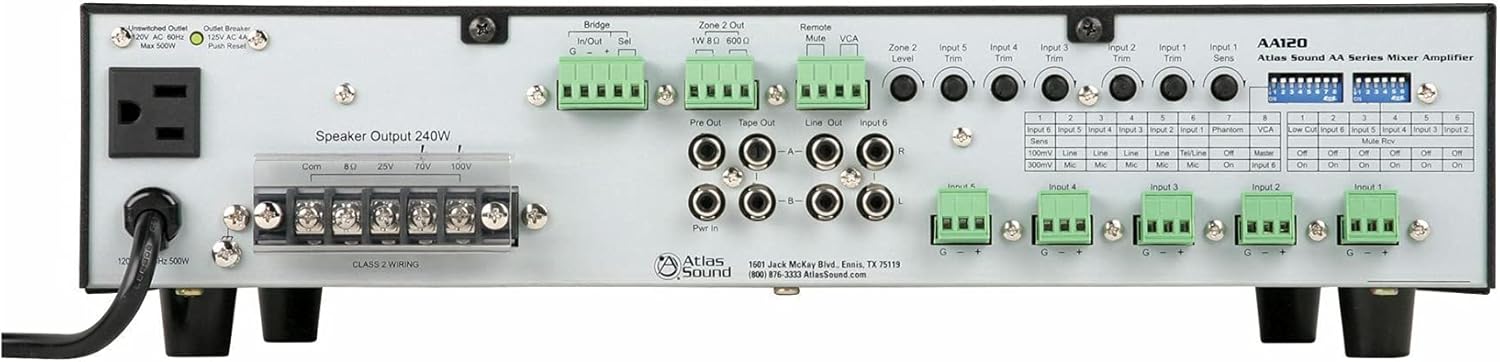

Figure 1: Rear Panel of the Atlas Sound AA120 Mixer AmpLifer

Rear Panel Components:

• Unswitched Outlet (120V AC 60Hz, Max 500W): A convenience outlet for powering external equipment.
• Outlet Breaker (125V AC 4A, Push Reset): A resettable circuit breaker for the unswitched outlet. Press to reset if tripped.
• Speaker Output 240W (Com, 8Ω, 25V, 70V, 100V): Terminal block for connecting speakers. Supports common, 8-ohm, 25-volt, 70-volt, and 100-volt speaker systems. Ensure Class 2 wiring is used.
• Bridge In/Out (G, -, +): Terminals for linking multiple amplifiers or integrating with external processing. 'Sel' switch selects bridging mode.
• Zone 2 Out (1W 8Ω, 600Ω): Output for a secondary audio zone, providing 1W at 8 ohms or a 600-ohm line level output.
• Remote Mute: Terminals for connecting an external remote mute switch.
• VCA (Voltage Voafehy AmpLitera): Terminals for external VCA control.
• Pre Out / Tape Out / Line Out / Input 6 (RCA): RCA jacks for pre-amplifier output, tape recording output, general line output, and stereo auxiliary input (Input 6).
• Pwr In (RCA): RCA jacks for power amplifier input, allowing external pre-amplifiers to drive the AA120's power section.
• Input Trim Controls (Input 1-5, Zone 2 Level): Rotary potentiometers for adjusting the input sensitivity of individual channels and the output level of Zone 2.
• Input 1-5 Terminal Blocks (G, -, +): Balanced input terminals for microphone or line-level sources.
• Dip Switches: A bank of switches for configuring various amplifier functions, including input sensitivity, phantom power, VCA assignment, low-cut filter, and mute reverse.

4. Fametrahana sy fametrahana

4.1 Famoahana

Carefully remove the AA120 from its packaging. Inspect the unit for any signs of damage that may have occurred during transit. Retain the packaging for future transport or storage.

4.2 Fametrahana

Apetraho ny amplifier in a location that allows for adequate ventilation. Avoid placing it near heat sources or in direct sunlight. Ensure the unit is on a stable, level surface. Do not obstruct the ventilation openings.

4.3 Fampifandraisana herinaratra

Ampifandraiso amin'ny tariby herinaratra AC ny tariby herinaratra nomena amplifier's power inlet and then to a grounded 120V AC, 60Hz power outlet. The unswitched outlet on the rear panel can provide power to other equipment, up to a maximum of 500W. If this outlet's breaker trips, press the 'Push Reset' button to restore power.

4.4 Fifandraisana amin'ny mpandahateny

The AA120 supports various speaker configurations. Connect your speakers to the 'Speaker Output 240W' terminal block. Ensure proper polarity and impedance matching.

• 8 ohm: For direct connection to low-impedance speakers.
• 25V, 70V, 100V: Ho an'ny tsy tapaka voltage distributed speaker systems. Connect the common (Com) terminal to the negative speaker wire and the appropriate voltage terminal (25V, 70V, or 100V) to the positive speaker wire.

Fanamarihana: Miantoka hatrany ny amplifier is powered off before making or changing speaker connections. Use Class 2 wiring for speaker connections.

4.5 Fifandraisana fidirana

The AA120 offers six input channels:

• Inputs 1-5 (Balanced Terminal Blocks): These inputs accept either microphone or line-level signals. Connect balanced audio cables to the G (ground), - (negative), and + (positive) terminals.
• Input 6 (Stereo RCA): This input is designed for stereo line-level sources such as CD players or media players. The stereo signal is summed to mono internally.

4.6 Dip Switch Configuration

The DIP switches on the rear panel allow for fine-tuning of input characteristics and other functions. Refer to the table below for their functions:

Zava-dehibe: Vonoy foana ny amplifier before changing DIP switch settings to prevent potential damage or unexpected behavior.

5. Torolàlana miasa

5.1 Mamelona/Mamono

To power on the amplifier, ensure all connections are secure, then press the power switch located on the front panel (not visible in rear panel image, but standard). To power off, press the switch again.

5.2 Fanitsiana ny haavon'ny fidirana

Use the 'Input Trim' rotary controls on the rear panel for Inputs 1-5 to adjust the sensitivity of each input channel. This allows you to match the input level of your source device to the amplifier. For Input 6, adjust the source device's output level or use the VCA control if assigned.

5.3 Master Volume Control

The master volume control (typically on the front panel, not shown in rear image) adjusts the overall output level of the amplifier. Start with the master volume at a low setting and gradually increase it to the desired listening level.

5.4 Mute Functions

The AA120 supports remote or VOX (Voice Operated Switch) mute capabilities. The 'Remote Mute' terminals allow for an external switch to mute the audio. The 'Mute Rev' DIP switches (1-7) allow you to reverse the mute logic for individual inputs, useful for paging systems where other audio is muted when a microphone is active.

5.5 Zone 2 Operation

The 'Zone 2 Out' provides a separate audio output. The 'Zone 2 Level' control adjusts the output level for this zone. This can be used for a separate listening area or to feed another ampLifer.

5.6 Sivana ambany fanapahana

The low-cut filter (6 dB per octave at 400 Hz) can be engaged via the DIP switch. This filter is particularly useful when using paging horns, as it helps to reduce low-frequency content that can cause distortion or reduce intelligibility in such speakers.

6. Fikojakojana

6.1 Fanadiovana

Manadio ny amplifier, disconnect it from the power source. Use a soft, dry cloth to wipe down the exterior. Do not use liquid cleaners or aerosol sprays, as they may damage the finish or internal components.

6.2 Ny rivotra

Periodically check that the ventilation openings are clear of dust and debris. Proper airflow is crucial for preventing overheating and ensuring the longevity of the ampLifer.

7. Famahana olana

If you encounter issues with your AA120, refer to the following common problems and solutions:

• Tsy misy hery:
  • Ataovy azo antoka fa mifandray tsara amin'ny roa tonta ny tariby herinaratra ampherinaratra sy fantson-drivotra miasa.
  • Check the main circuit breaker for your building.
  • If using the unswitched outlet, check its dedicated 'Outlet Breaker' and press 'Push Reset' if tripped.
• Tsy misy feo:
  • Verify that speakers are correctly connected to the appropriate output terminals (Com, 8Ω, 25V, 70V, or 100V).
  • Check all input connections and ensure source devices are playing audio.
  • Ensure input trim controls and master volume are set to audible levels.
  • Check DIP switch settings for mute functions; ensure no inputs are inadvertently muted.
• Feo diso:
  • Reduce input trim levels if the input signal is too strong.
  • Ataovy azo antoka fa mifanaraka amin'ny impedance ny mpandahateny amplifier output (e.g., 8Ω speakers to 8Ω terminal).
  • Check speaker wiring for shorts or loose connections.

If the problem persists after attempting these troubleshooting steps, contact Atlas Sound customer support for assistance.

8. Famaritana

9. Warranty sy fanohanana

9.1 Fampahalalana momba ny fiantohana

Atlas Sound products are manufactured to high standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Atlas Sound website. Tehirizo ny porofon'ny fividiananao ho an'ny fitakiana fiantohana.

9.2 Fanohanana ny mpanjifa

For technical assistance, service, or replacement parts, please contact Atlas Sound customer support:

• Adiresy: 1601 Jack McKay Blvd., Ennis, TX 75119, USA
• Telefaonina: (800) 876-3333
• Webtranokala: AtlasSound.com
