Freestanding Multi-Layer Kitchen Pantry Cabinet

1. Fampidirana

Thank you for choosing the Generic Freestanding Multi-Layer Kitchen Pantry Cabinet. This versatile storage unit is designed to provide efficient organization in various settings, including kitchens, living rooms, dining rooms, offices, and garages. Constructed from durable carbon steel with a rock board tabletop, this cabinet offers robust storage and a modern aesthetic. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.

2. Information momba ny fiarovana

• Always assemble the cabinet on a clean, flat, and stable surface to prevent damage or injury.
• Ataovy azo antoka fa voahenjana tsara ny visy sy ny fitaovana fametahana rehetra alohan'ny hampiasana azy. Jereo tsy tapaka ary henjano indray raha ilaina.
• Do not overload the shelves or drawers. Refer to the 'Specifications' section for load capacity.
• Arovy amin'ny ankizy ny kojakoja kely sy ny fitaovana famonosana mba hisorohana ny loza mety hitranga.
• Use caution when moving the cabinet, especially when loaded. Ensure wheels are unlocked before moving and locked when stationary.
• Avoid placing hot items directly on the rock board tabletop without protective mats.

3. Ny votoatin'ny fonosana

Alohan'ny hanombohana ny fametrahana azy, dia jereo tsara fa eo daholo ny singa rehetra ary tsy simba. Raha misy banga na simba dia mifandraisa amin'ny serivisy ho an'ny mpanjifa.

• Cabinet Frame Components (Carbon Steel)
• Rock Board Tabletop
• Shelves and Movable Partitions
• Cabinet Doors (with fluted glass design)
• Drawers and Drawer Slides
• Universal Wheels (with locking mechanism)
• Anti-slip Foot Pads
• Pegboard and Hooks/Accessories (as included)
• Fitaovana fanamboarana (visy, visy, lakile Allen)
• Boky torolalana

4. Torolàlana momba ny fananganana sy ny fivoriambe

Assembly of this cabinet requires basic tools (usually included) and can be completed by following these general steps. Refer to the detailed diagrams provided in your package for specific part identification and sequence.

1. Esory ary fantaro ny ampahany: Carefully remove all components from the packaging. Lay them out and compare them against the parts list in your package to ensure everything is present.
2. Assemble the Base Frame: Connect the bottom frame pieces using the provided hardware. Ensure all connections are secure.
3. Attach Wheels or Foot Pads: Decide whether to use the universal wheels for mobility or the anti-slip foot pads for stationary placement. Screw them into the designated holes at the bottom of the base frame. If using wheels, ensure the locking mechanism is functional.
4. Install Side and Back Panels: Attach the side and back panels to the base frame. Pay attention to the orientation of the pegboard section if applicable.
5. Insert Shelves and Partitions: Place the fixed and movable shelves into their desired positions. The movable partitions allow for flexible storage configurations.
6. Mametraha vatasarihana: Assemble the drawers according to the instructions and install the drawer slides onto the cabinet frame. Carefully insert the assembled drawers into the slides.
7. Ampidiro ny varavaran'ny kabinetra: Mount the cabinet doors using the provided hinges. Adjust hinges as needed to ensure proper alignment and smooth opening/closing.
8. Place Rock Board Tabletop: Carefully position the rock board tabletop onto the designated surface of the cabinet. Ensure it is level and secure.
9. Attach Pegboard Accessories: If included, attach hooks, small shelves, or other accessories to the pegboard for additional organization.
10. Fanamarinana farany: Verify that all connections are tight, the cabinet is stable, and doors/drawers operate smoothly.

Figure 4.1: Overall dimensions of the cabinet. Note the 120cm width, 152cm height, and 42cm depth.

Figure 4.2: Detail of universal wheels and anti-slip foot pads for cabinet stability and mobility.

5. Torolàlana miasa

This multi-layer cabinet is designed for versatile storage and organization.

• Fitehirizana malalaka: Utilize the folio dual cabinet doors and internal shelves for storing kitchen pots, cutlery, dishes, and other accessories. The movable partitions allow you to customize the internal space to fit items of various sizes.
• Pegboard Design: The integrated pegboard on the back panel provides additional hanging storage for utensils, mugs, or small tools. Four wire holes are available for passing through cables for appliances like blenders or bread machines.
• Fametrahana zavatra maro: The universal wheels allow for easy repositioning of the cabinet within your kitchen, living room, office, or garage. Lock the wheels when the cabinet is in its desired location to ensure stability.
• Fampiasana maro: Beyond kitchen storage, this cabinet can serve as a bookshelf, display cabinet, or general storage unit for books, magazines, toys, office documents, or garage tools.

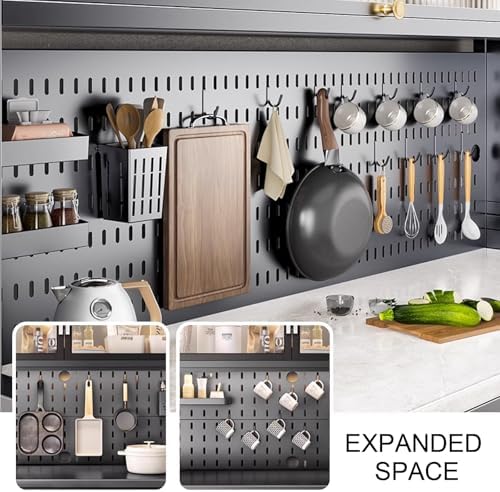

Figure 5.1: Pegboard design for expanded storage and organization.

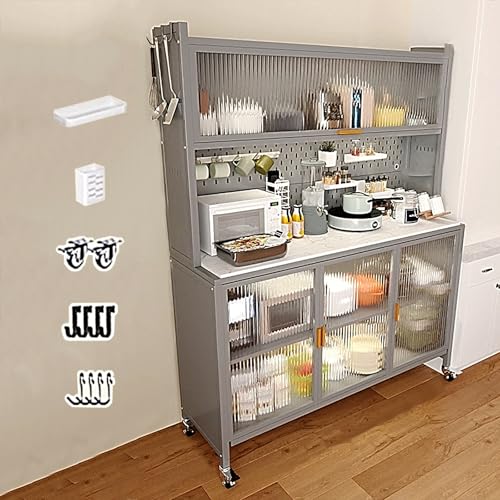

Figure 5.2: Cabinet in use, demonstrating its storage capabilities and countertop space.

6. Fikojakojana

• Fanadiovana: Wipe the carbon steel surfaces with a soft, damp cloth and mild detergent. Dry immediately to prevent water spots. For the rock board tabletop, use a non-abrasive cleaner suitable for stone surfaces.
• Ialao ny simika mahery vaika: Do not use abrasive cleaners, strong solvents, or scouring pads, as these can damage the finish of the cabinet and tabletop.
• Fanaraha-maso tsy tapaka: Periodically check all screws, bolts, and connections to ensure they remain tight. Re-tighten if any looseness is detected.
• Door and Drawer Alignment: If doors or drawers become misaligned, adjust the hinges or drawer slides as necessary.
• Fikarakarana kodia: Keep the universal wheels clean and free of debris to ensure smooth movement. Lubricate if necessary.

7. Famahana olana

• Cabinet is Unstable/Wobbly:
  Vahaolana: Ensure the cabinet is on a level surface. Check that all assembly screws are fully tightened. If using foot pads, adjust them to compensate for uneven floors. If using wheels, ensure they are locked when stationary.
• Tsy mihidy tsara ny varavarana:
  Vahaolana: Check hinge alignment. Loosen hinge screws slightly, adjust the door position, and re-tighten. Ensure no items inside the cabinet are obstructing the door closure.
• Drawers Stick or Are Difficult to Open/Close:
  Vahaolana: Verify that the drawer slides are correctly installed and aligned. Ensure no objects are blocking the drawer's path. Check if the drawer is overloaded.
• Scratches on Tabletop:
  Vahaolana: While the rock board is wear-resistant, minor scratches can occur. Use appropriate stone polish or consult a professional for deeper scratches. Always use cutting boards and protective mats.

8. Famaritana

Figure 8.1: Illustration of the cabinet's robust load-bearing capacity (up to 200 kg).

9. Warranty sy fanohanana

Ity vokatra ity dia misy antoka mahazatra avy amin'ny mpanamboatra raha misy lesoka amin'ny fitaovana sy ny asa tanana. Jereo azafady ny antontan-taratasin'ny fividiananao raha mila fanazavana fanampiny momba ny fepetra sy ny faharetan'ny antoka.

For technical assistance, missing parts, or warranty claims, please contact the seller or manufacturer directly through your purchase platform. Have your order number and product model information ready when contacting support.
