QSZN Android Canbus Box LNF1.10 Installation Manual

1. Fampidirana

This manual provides detailed instructions for the installation and basic understanding of the QSZN Android Canbus Box LNF1.10 and its accompanying 16-pin wiring harness. This product is designed to facilitate the integration of an aftermarket Android car radio into specific Renault vehicles, enabling communication between the new radio and the vehicle's CAN-bus system for functions such as steering wheel controls and vehicle data display.

Please read this manual thoroughly before beginning installation to ensure proper setup and to prevent damage to your vehicle or the product.

2. Vokatra mihoatraview

The QSZN Android Canbus Box LNF1.10 is an interface module that translates the vehicle's CAN-bus signals into a format compatible with aftermarket Android car radios. This allows the new radio to interact with various vehicle systems, such as receiving signals from steering wheel control buttons, displaying door status, or climate control information (depending on the vehicle and radio capabilities).

The included 16-pin wiring harness provides the necessary power, ground, speaker, and CAN-bus connections to integrate the Canbus box and the new radio into the vehicle's existing wiring system.

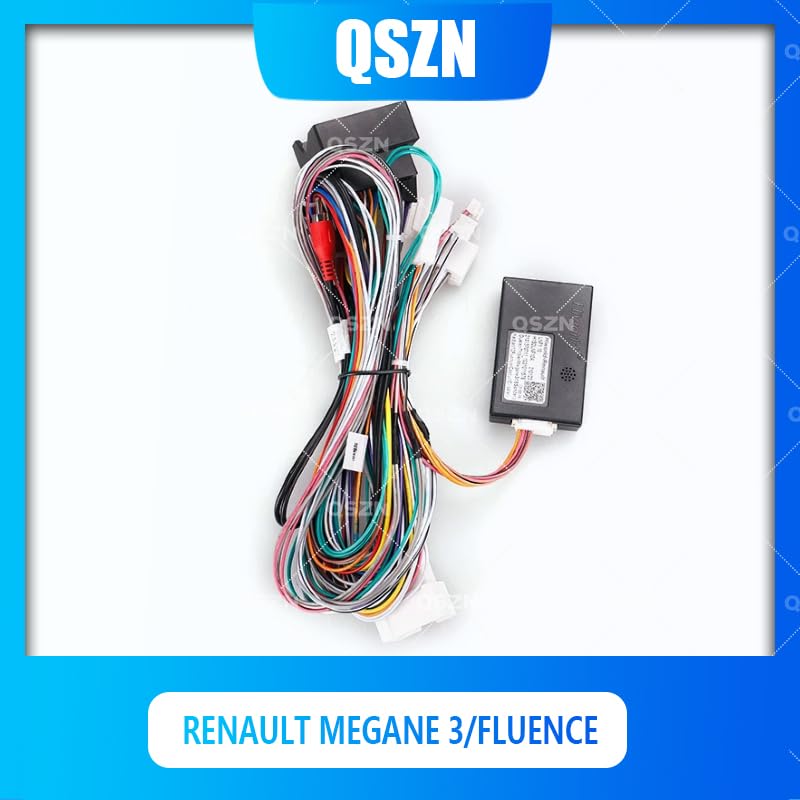

Image 2.1: The QSZN Android Canbus Box LNF1.10 with its integrated 16-pin wiring harness. This image displays the main components, including the black Canbus module and the multi-colored wires of the harness, designed for connecting an aftermarket car radio to a Renault vehicle's electrical system.

Sary 2.2: A antsipirihany view of the QSZN Canbus Box LNF1.10 module. The image shows the compact black plastic housing of the Canbus interface, with connection ports and identification labels visible, indicating its model number and compatibility information.

3. Mifanaraka

This Canbus box and wiring harness are specifically designed for the following vehicle models:

• Renault Megane 3 (Model years: 2008, 2009, 2010, 2011, 2012, 2013, 2014)
• Renault Fluence (Model years: 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Ensure your vehicle falls within these specifications before attempting installation. Compatibility with specific aftermarket Android head units may vary; consult your radio's manual for wiring diagrams and Canbus support.

4. Ny votoatin'ny fonosana

Ny fonosana dia ahitana ireto singa manaraka ireto:

• 1 x QSZN Android Canbus Box LNF1.10
• 1 x 16-Pin Wiring Power Cable Harness

Note: Other products or tools required for installation (e.g., aftermarket Android radio, trim removal tools, screwdrivers) are not included.

5. Fametrahana sy fametrahana

Fametrahana matihanina no tena soso-kevitra. Incorrect wiring can cause damage to your vehicle's electrical system or the new radio. Always disconnect the vehicle's battery before starting any electrical work.

5.1 Fiarovana fiarovana

• Always disconnect the negative terminal of the vehicle's battery before installation.
• Manaova fitaovana fiarovana sahaza, anisan'izany ny fiarovana maso.
• Ataovy azo antoka fa voaaro tsara ny fifandraisana rehetra.
• Refer to your vehicle's service manual for specific instructions on removing and installing the factory radio.

5.2 Dingana fametrahana

1. Omano ny fiara: Disconnect the negative terminal of your vehicle's battery. Carefully remove the factory radio and any surrounding trim panels using appropriate trim removal tools.
2. Identify Vehicle Connectors: Locate the factory wiring harness connectors that were plugged into your original radio.
3. Connect the Canbus Harness:

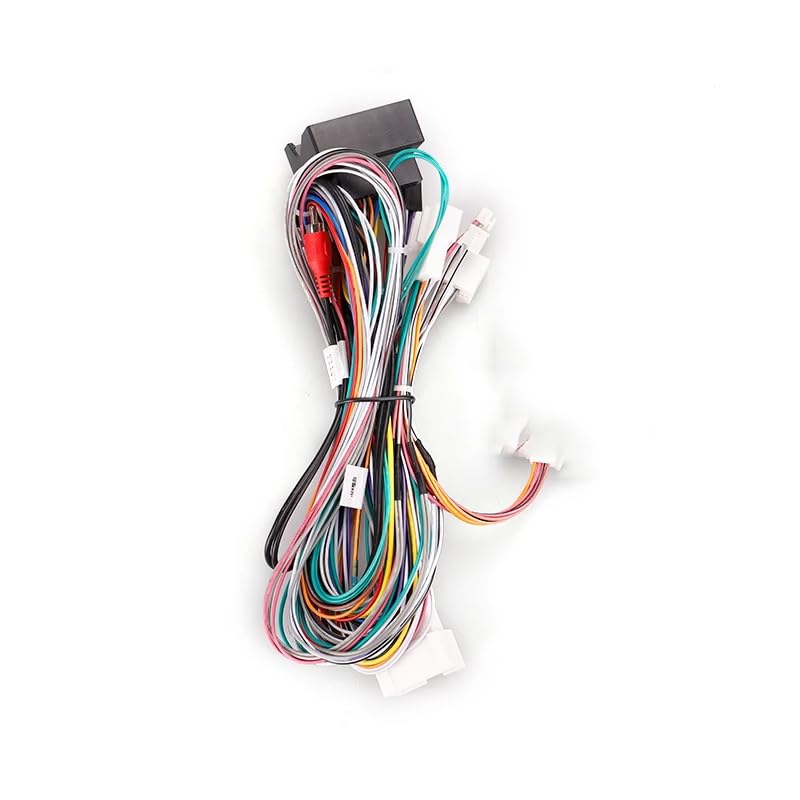

   Sary 5.1: akaiky view of the QSZN 16-pin wiring harness, showing the various colored wires and connectors. This harness connects the Canbus box to both the vehicle's existing wiring and the new aftermarket Android radio.

   Connect the vehicle-specific end of the provided 16-pin wiring harness to the corresponding factory connectors in your Renault Megane 3 or Fluence. Ensure all connections are firm and secure.

4. Ampifandraiso ny boaty Canbus: Plug the Canbus box module (LNF1.10) into the designated connector on the 16-pin wiring harness. This connection is typically a multi-pin plug designed to fit only one way.
5. Mifandraisa amin'ny Radio Android: Connect the other end of the 16-pin wiring harness to the corresponding input on your aftermarket Android car radio. This harness typically includes connections for power, ground, speakers, and the Canbus data lines. Refer to your Android radio's wiring diagram for specific pin assignments.
6. Andrana fifandraisana: Before fully reassembling the dashboard, reconnect the vehicle's battery. Turn on the ignition and power on the Android radio. Test basic functions such as power, sound, and critically, the steering wheel controls. If steering wheel controls do not function, you may need to configure them within your Android radio's settings, often found under "SWC" or "Canbus Settings."
7. Ataovy azo antoka ary averina angonina: Once all functions are verified, carefully route the wiring to prevent pinching or interference. Secure the Canbus box in a safe, accessible location behind the dashboard. Reinstall the Android radio and all trim panels.

6. Torolàlana miasa

The QSZN Android Canbus Box LNF1.10 operates automatically once correctly installed. Its primary function is to translate vehicle data for your aftermarket Android radio. There are no user-adjustable settings directly on the Canbus box itself.

Key functions enabled by the Canbus box typically include:

• Fanaraha-maso ny familiana (SWC): Allows your vehicle's factory steering wheel buttons to control functions on the new Android radio (e.g., volume up/down, track skip, mode). Configuration may be required within the Android radio's settings.
• Ignition (ACC) Signal: Provides the correct ignition signal to turn the radio on and off with the vehicle.
• Illumination Signal: Dims the radio's display when headlights are turned on.
• Famantarana ny fitaovana mivadika: Activates the rearview camera input on the radio when the vehicle is in reverse.
• Vehicle Speed Sensor (VSS) Signal: Provides speed data for navigation systems or speed-sensitive volume control.
• Famantarana ny frein fijanonana: Provides parking brake status for safety features on the radio.

For specific operations and settings related to these functions, refer to the user manual of your aftermarket Android car radio.

7. Fikojakojana

The QSZN Android Canbus Box LNF1.10 is a sealed electronic component and requires minimal maintenance. Follow these general guidelines:

• Tohizo ho maina: Ensure the module and its connections remain dry and free from moisture.
• Fametrahana azo antoka: Ensure the Canbus box is securely mounted or placed behind the dashboard to prevent rattling or damage from movement.
• Madio fifandraisana: If you ever need to disconnect and reconnect, ensure the electrical contacts are clean and free of debris.
• Fadio ny hafanana tafahoatra: While designed for automotive use, avoid exposing the unit to extreme temperatures outside of normal vehicle operating conditions.

Do not attempt to open or repair the Canbus box, as this will void any potential warranty and may damage the unit.

8. Famahana olana

Raha sendra olana ianao aorian'ny fametrahana azy dia diniho ireto dingana manaraka ireto mba hamahana olana:

• Tsy misy herinaratra amin'ny radio:
  • Check all power connections (constant 12V, ignition 12V, ground) from the harness to the vehicle and to the radio.
  • Verify the vehicle's fuse for the radio circuit is intact.
  • Ensure the battery is properly reconnected.
• Tsy mandeha ny fanaraha-maso ny familiana:
  • Confirm the Canbus box is securely connected to the harness.
  • Check the Canbus data wires are correctly connected to the Android radio (refer to radio manual).
  • Access the "SWC" or "Canbus Settings" menu on your Android radio and attempt to configure or learn the steering wheel buttons. Some radios require manual mapping.
  • Ensure the correct Canbus protocol is selected in the Android radio's settings, if applicable.
• Tsy misy feo:
  • Verify all speaker wires are correctly connected from the harness to the radio.
  • Check the radio's volume and mute settings.
  • Ensure the vehicle's amplifier (if present) is receiving its turn-on signal (usually a blue/white wire).
• Other Vehicle Data (e.g., door status, climate) Not Displaying:
  • Ensure the Canbus box is correctly connected.
  • Verify your Android radio supports displaying this specific vehicle data via Canbus. Not all radios have this functionality.
  • Check the radio's factory settings or Canbus settings for options related to vehicle information display.

If problems persist, consult a professional car audio installer or contact the product seller for further assistance.

9. Famaritana

10. Warranty sy fanohanana

For warranty information and technical support, please refer to the terms provided by your original retailer or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

Note: Opening or modifying the Canbus box will void any applicable warranty.
