1. Fampahalalana manan-danja momba ny fiarovana
Vakio ny toromarika rehetra alohan'ny hampiasana ity fitaovana ity mba hampihenana ny mety hisian'ny afo, fahatafintohinana herinaratra, na ratra amin'ny olona. Tehirizo ity boky ity ho fanondroana ho avy.
Fiarovana elektrika
- Ensure the appliance is properly grounded. Use a dedicated 110V AC outlet.
- Aza mampiasa tady fanitarana na adaptatera tsy misy fotony (prong roa).
- Aza ampiasaina ny fitaovana raha simba ny tariby herinaratra. Mifandraisa amin'ny mpiasan'ny fanamboarana mahafeno fepetra.
Fiarovana ankapobeny
- Arovy ny varavarankelin'ny rivotra mba tsy hisy sakana.
- Aza mitahiry zavatra mipoaka toy ny kapoaka aerosol misy propellant mora mirehitra ao anatin'ity fitaovana ity.
- Ity fitaovana ity dia tsy natao hampiasain'ny olona (anisan'izany ny ankizy) manana fahasahiranana ara-batana, ara-pihetseham-po na ara-tsaina, na tsy fahampian'ny traikefa sy fahalalana, raha tsy hoe nomena fanaraha-maso na toromarika mikasika ny fampiasana ny fitaovana avy amin'ny olona iray tompon'andraikitra amin'ny fiarovana azy ireo.
- Tokony hojerena ny ankizy mba hahazoana antoka fa tsy milalao amin'ny fitaovana izy ireo.
2. Vokatra mihoatraview
The Smad 17 Cu.Ft Upright Convertible Freezer/Refrigerator offers versatile storage with a frost-free design and the ability to switch between freezer and refrigerator modes. Its stainless steel finish provides a modern look suitable for various home environments.
Endri-javatra fototra
- Fitehirizana malalaka: 17 cubic feet capacity with 4 glass shelves, 2 crisper drawers, and 4 door bins.
- Famolavolana azo ovaina: Easily switch between freezer mode (-11°F to 10°F) and refrigerator mode (35°F to 46°F).
- Teknolojia tsy misy ranomandry: Prevents ice buildup, eliminating the need for manual defrosting.
- Quick-Freeze Function: Rapidly freezes newly added food items to preserve freshness.
- LED Display & Interior Light: Intuitive external control panel and bright internal LED lighting for clear visibility.
- Constant Temp Cooling System: Maintains uniform temperature throughout the unit.
- System fanairana: Alerts for abnormal temperatures and when the door is left open.
- Fivezivezena & Fahamarinan-toerana: Equipped with 2 rollers and 2 adjustable front leveling legs.
Vidin'ny vokatra
Lahatsary vokatra ofisialy
Clip 2.1: Ity vidéo ity dia manome vahanaview of the Smad Stainless Steel Upright Freezer, highlighting its 17 cu.ft and 21 cu.ft models and key features.
3. Fametrahana & Fametrahana
Famoahana
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the appliance for any shipping damage. Report any damage immediately to the retailer.
fametrahana
- Place the appliance on a firm, level floor that is strong enough to support it when fully loaded.
- Allow at least 4 inches (10 cm) of space between the back of the appliance and the wall for proper air circulation.
- Ensure adequate space on the sides and top for proper ventilation and door opening.
- Avoid placing the appliance in direct sunlight or near heat sources (e.g., stove, heater).
- This model is designed to be freestanding.
Leveling
The appliance is equipped with 2 rollers and 2 adjustable front leveling legs. Adjust the leveling legs to ensure the unit is stable and level. A level appliance operates more efficiently and prevents the door from swinging open or closed unexpectedly.
Fifandraisana elektrika
Connect the appliance to a dedicated, properly grounded 110V AC electrical outlet. Do not use extension cords or multi-outlet adapters. Ensure the power cord is not pinched or damaged.
Startup voalohany
After placement and electrical connection, allow the appliance to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, allow the unit to cool for several hours before loading food.
4. Torolàlana miasa

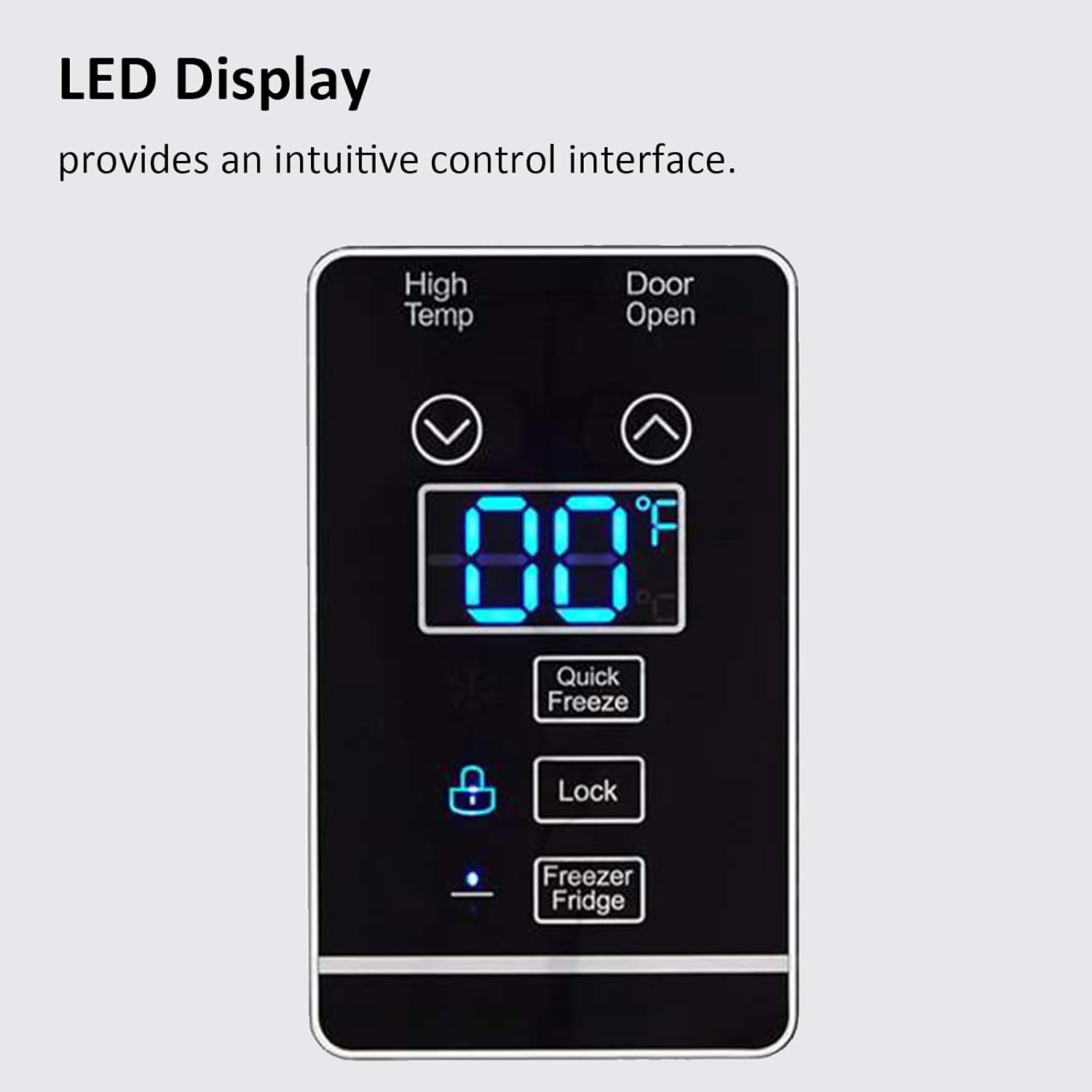

Takelaka fikirakirana
The LED display on the door allows you to monitor and adjust settings. It includes:
- Fampisehoana maripana: Mampiseho ny mari-pana anatiny amin'izao fotoana izao.
- Bokotra fanitsiana ny maripana: Use these to increase or decrease the set temperature.
- Quick Freeze Button: Activates the rapid freezing function.
- bokotra hidy: Manidy ny tontonana fanaraha-maso mba hisorohana ny fanovana tsy nahy.
- Freezer/Fridge Mode Button: Toggles between freezer and refrigerator operating modes.
Fanitsiana ny maripana
Press the temperature adjustment buttons to set your desired temperature. The available temperature ranges are:
- Fomba fanala: -11°F hatramin'ny 10°F (-24°C hatramin'ny -12°C)
- Fomba fampangatsiahana: 35°F hatramin'ny 46°F (2°C hatramin'ny 8°C)
Allow several hours for the appliance to reach the newly set temperature.
Fampiasana fampangatsiahana haingana
Activate the Quick Freeze function when adding a large quantity of fresh food to rapidly lower the temperature and preserve food quality. The function will automatically deactivate after a set period or when the target temperature is reached.
fanairana
- Fanairana hafanana: An audible alarm will sound if the internal temperature rises above a safe level.
- Fanairana misokatra varavarana (Door Open Alarm): An alarm will sound if the door is left open for an extended period. Close the door promptly to conserve energy.
5. Fikojakojana & Fikarakarana
FANADIOVANA
- Atitany: Diovy tsy tapaka amin'ny savony malefaka sy rano matimaty ny ao anatiny. Kobanina tsara ary maina. Esory ny talantalana sy ny vatasarihana mba hanamorana ny fanadiovana.
- ivelany: Wipe the stainless steel exterior with a soft cloth and a mild stainless steel cleaner. Avoid abrasive cleaners or scouring pads.
- Door Gasket: Diovy tsy tapaka ny tombo-kase eo amin'ny varavarana mba hahazoana antoka fa mafy tsara ny tombo-kase.
Defrosting
This appliance features frost-free technology, which automatically prevents ice buildup on the evaporator coils. Therefore, manual defrosting is generally not required. However, occasional cleaning of any minor ice accumulation on surfaces is recommended.
Hery Outage
Raha misy hery outage, keep the appliance door closed to maintain the internal temperature for as long as possible. Avoid opening the door unnecessarily.
Vacation & Storage
For long periods of absence, unplug the appliance, empty all contents, clean thoroughly, and leave the door slightly ajar to prevent odors and mold growth.
6. Famahana olana
Alohan'ny hifandraisana amin'ny serivisy, jereo ireto olana sy vahaolana mahazatra ireto:
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy miasa ny fitaovana | Tsy misy herinaratra, tapaka ny "circuit breaker", ary mivaha ny "plug". | Jereo ny famatsiana herinaratra, avereno apetraka ny "breaker", ary ataovy azo antoka fa voafehy tsara ny plug. |
| Tsy mangatsiaka ny maripana | Door left open, excessive warm food added, poor ventilation, temperature setting too high. | Ensure door is closed, allow time for new food to cool, check ventilation, lower temperature setting. |
| tabataba be loatra | Appliance not level, touching wall, loose parts. | Level the appliance, move away from walls, check for loose components. |
| Tsy mihidy tsara ny varavarana | Door gasket dirty/damaged, appliance not level, food blocking closure. | Clean/replace gasket, level appliance, rearrange food items. |
7. Famaritana
- marika: Smad
- Modely: FBM-DSD-625WMU
- fahafahana: 17 Toratelo tongotra
- refy (WxDxH): 32.8 x 28.9 x 65 santimetatra
- Lanja entana: 179 kg
- Karazana fanala: Mandeha ho azy (Tsy misy fanala)
- Karazana fametrahana: tokana
- BOKYtage: 110 Volts (AC)
- Fanjifana angovo isan-taona: 438 Kilowatt ora isan-taona
- talantalana: 4 (Varatra)
- Crispers/Drawers: 2
- Door Bins: 4
- Endri-javatra manokana: LED Interior Light, Constant Temp Cooling System, Temperature Alarm, Door Open Alarm
- Karazana fitaovana varavarana: Inôksa
8. Warranty & Fanohanana
For warranty information, product support, or to inquire about protection plans, please contact Qingdao smod Electric Co., Ltd. or refer to the documentation provided with your purchase. Keep your proof of purchase for any warranty claims.
