Generic RT160028 Electric Wood Router Instruction Manual

1. Torolàlana manan-danja momba ny fiarovana

Always follow basic safety precautions when using this electric router to reduce the risk of fire, electric shock, and personal injury.

• Vakio ny toromarika rehetra: Fantaro ny fomba fiasan'ilay fitaovana sy ny torolalana fiarovana alohan'ny hampiasana azy.
• Manaova fitaovana fiarovana sahaza: Always use eye protection, hearing protection, and a dust mask.
• Ataovy azo antoka ny workpiece: Ensure the material being routed is firmly clamped mba hisorohana ny hetsika mandritra ny fandidiana.
• Ataovy madio ny toeram-piasana: Miteraka lozam-pifamoivoizana ny faritra mikorontana sy dabilio.
• Aza manomboka tsy nahy: Hamarino tsara fa amin'ny toerana maty ny bokotra alohan'ny hampidirana ny fitaovana.
• Aza mihoa-pefy: Tazony tsara ny tongotra sy ny fifandanjana amin'ny fotoana rehetra.
• Tapaka ny fahefana: Unplug the router from the power source before making any adjustments, changing accessories, or storing the tool.
• Ampiasao ny fitaovana mety: Aza terena fitaovana kely na zavatra fanampiny hanao ny asan'ny fitaovana mavesatra.
• Jereo raha misy fahasimbana: Before each use, check for damaged parts and ensure all guards are in place and functioning correctly.

2. Ny votoatin'ny fonosana

Esory tsara ilay boaty ary ataovy izay hahazoana antoka fa misy sy tsy simba ny entana rehetra. Raha misy entana tsy hita na simba dia mifandraisa amin'ny mpivarotra anao.

• Generic RT160028 Electric Wood Router (1600W, 12mm)
• Aluminum Guide Fence
• Carbon Brushes (1 set)
• Collet (12mm)
• Wrenches for bit changes
• Dust collection adapter (if included)
• Boky torolalana

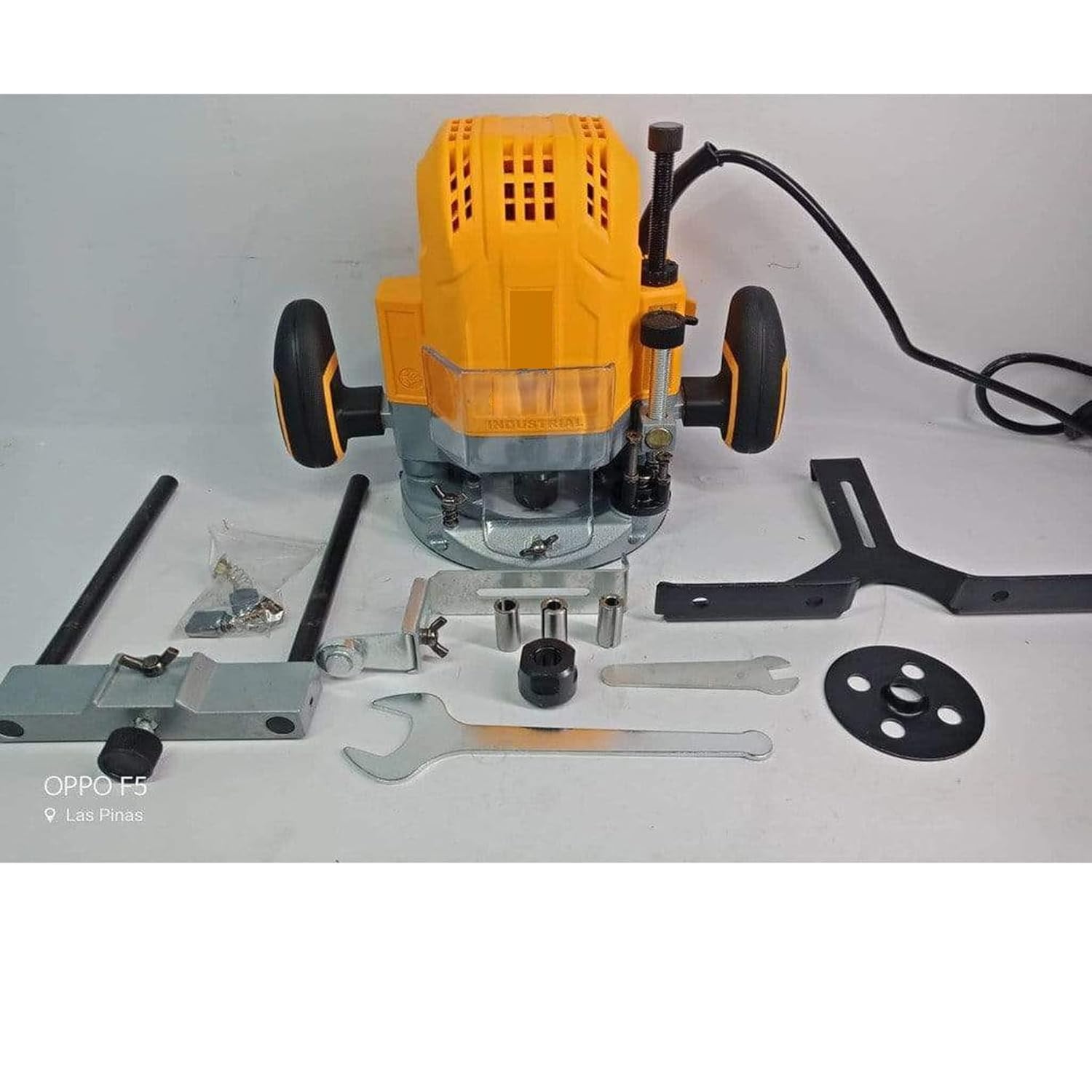

Image: The Generic RT160028 Electric Wood Router with its complete set of accessories, including the aluminum guide fence, wrenches, and carbon brushes.

3. Vokatra mihoatraview

The Generic RT160028 is a powerful 1600W electric wood router designed for various woodworking tasks. It features a 12mm collet size, variable speed control, and a depth adjustment mechanism for precise routing. The ergonomic design and compatibility with dust collection systems enhance user comfort and maintain a cleaner workspace.

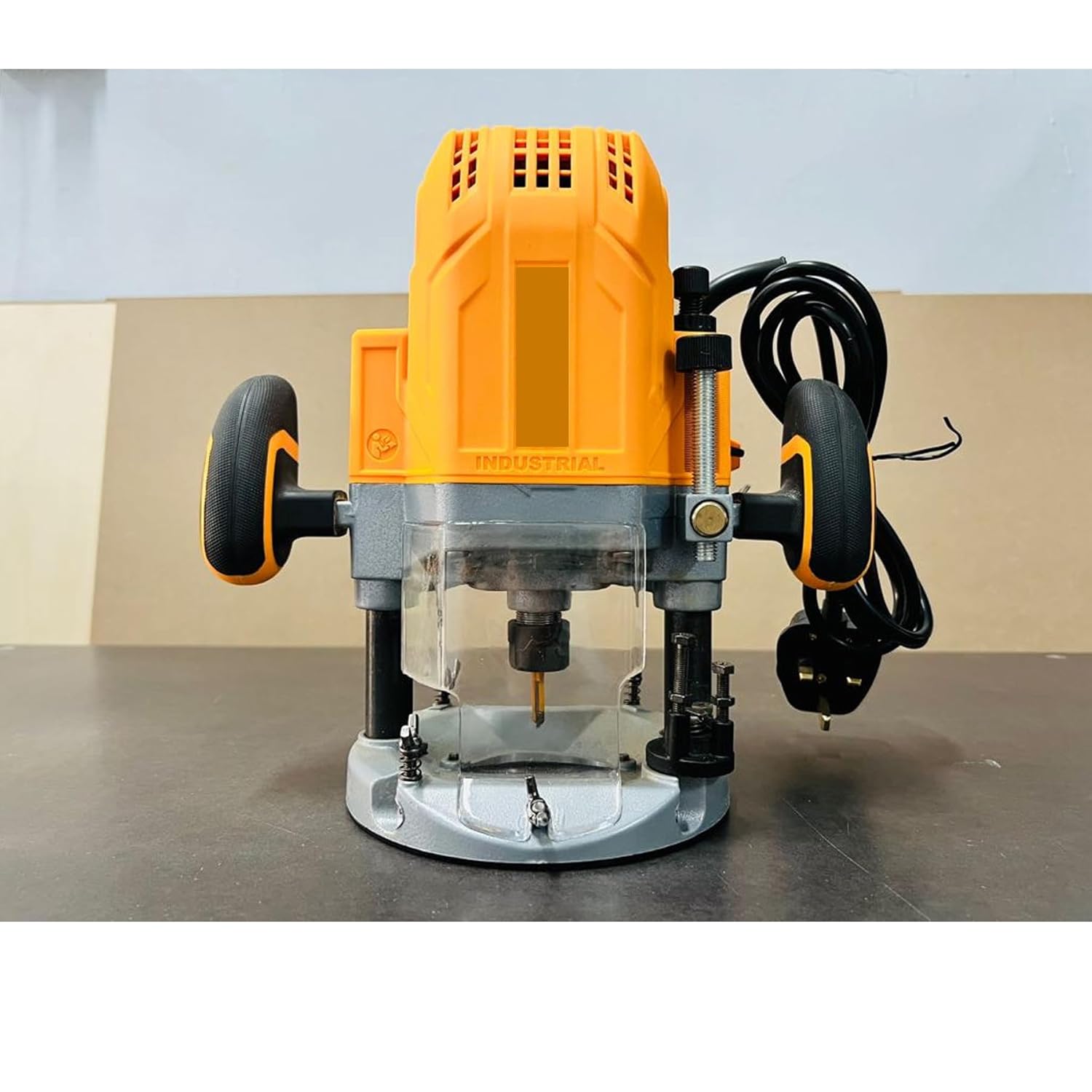

Sary: Front view of the Generic RT160028 Electric Wood Router, showing the plunge base, collet, and handles.

4. Fametrahana

4.1 Fametrahana ireo "router bits"

1. Ataovy azo antoka fa nesorina tamin'ny loharanon-jiro ny router.
2. Loosen the collet nut using the provided wrenches.
3. Insert the shank of the router bit into the collet, ensuring it is inserted at least two-thirds of the way. Do not bottom out the bit.
4. Tighten the collet nut firmly with the wrenches.

4.2 Fanitsiana ny halaliny

1. Apetraho eo amin'ny workpiece ny router.
2. Release the plunge lock lever.
3. Ampidino ny "router" mandra-pikasika ny velaran'ny workpiece amin'ny alalan'ny "bit".
4. Lock the plunge lever.
5. Adjust the depth stop mechanism to the desired cutting depth.
6. Perform a test cut on scrap material to verify the depth.

4.3 Mampifandray ny fanangonana vovoka

For a cleaner work environment and improved visibility, connect a dust extraction system to the router's dust port (if applicable). Ensure the connection is secure.

Sary: aoriana view of the Generic RT160028 Electric Wood Router, highlighting the power cord connection and ergonomic handles for control during setup and operation.

5. Torolàlana miasa

5.1 Mamelona/Mamono

• To turn on the router, press the power switch to the 'ON' position.
• To turn off the router, press the power switch to the 'OFF' position.
• Always ensure the router is off before plugging or unplugging it.

5.2 Fanaraha-maso ny hafainganam-pandeha miovaova

The router features variable speed control, allowing you to adjust the rotational speed based on the material and router bit. Use lower speeds for larger diameter bits, harder materials, or when more control is needed. Higher speeds are suitable for smaller bits and softer materials.

• Rotate the speed control dial to select the desired RPM.
• Refer to the bit manufacturer's recommendations for optimal speed settings.

5.3 Teknôlôjian'ny lalana

• Tari-dalana fanapahana: Always feed the router against the rotation of the bit to maintain control and prevent kickback.
• Shallow Passes: For deeper cuts, make multiple shallow passes instead of one deep pass to reduce strain on the tool and improve cut quality.
• Mitazona fifehezana: Tazony mafy amin'ny tanana roa ny "router".
• Use Guide Fence: For straight cuts, attach and adjust the aluminum guide fence.

6. Fikojakojana

Ny fikojakojana tsy tapaka dia miantoka ny faharetana sy ny fahombiazan'ny router-nao.

6.1 Fanadiovana

• Disconnect the router from the power supply before cleaning.
• Use a soft brush or compressed air to remove dust and debris from the motor vents and collet area.
• Fafao amin'ny lamba madio ny ivelany,amp lamba. Aza mampiasa zavatra simika mahery vaika na solvent.

6.2 Fanoloana borosy karbona

The carbon brushes are wear items and will need replacement over time. Worn brushes can lead to reduced power or intermittent operation.

1. Ensure the router is unplugged.
2. Locate the brush caps on the motor housing.
3. Unscrew the brush caps and carefully remove the old carbon brushes.
4. Insert the new carbon brushes, ensuring they are oriented correctly.
5. Securely screw the brush caps back into place.

6.3 Fitehirizana

Store the router in a clean, dry place, away from moisture and direct sunlight. Keep it out of reach of children.

7. Famahana olana

Jereo ity fizarana ity ho an'ny olana mahazatra sy ny vahaolana.

8. Famaritana

Detailed technical specifications for the Generic RT160028 Electric Wood Router.

9. Warranty sy fanohanana

Raha mila fampahalalana momba ny fiantohana, fanohanana ara-teknika, na fanontaniana momba ny serivisy, azafady jereo ny antontan-taratasy omena amin'ny fotoana hividianana na mifandraisa amin'ny mpivarotra anao. Tehirizo ny porofon'ny fividiananao ho an'ny fitakiana fiantohana.
