1. Fampidirana
Thank you for choosing the Heylo KT 20 Dehumidifier. This lightweight and compact device is designed for efficient moisture removal in various environments, including new constructions, basements, and after water damage. Please read this manual carefully before operating the device to ensure safe and optimal performance.
The Heylo KT 20 features a maximum dehumidification capacity of 24 liters per day, providing a reliable solution for reducing humidity levels in enclosed spaces.
2. Torolàlana momba ny fiarovana
FAMPITANDREMANA: Ny tsy fanarahana ireto toromarika fiarovana ireto dia mety hiteraka fahatairana herinaratra, afo, na ratra mafy.
- Always connect the dehumidifier to a grounded power outlet with the correct voltage.
- Aza miasa amin'ny tady herinaratra na plug simba ny fitaovana.
- Keep the unit away from water and other liquids. Do not immerse the unit in water.
- Ataovy izay hahazoana rivotra tsara manodidina ny fitaovana. Aza sakanana ny fidirana na ny fivoahan'ny rivotra.
- Aza mampiditra rantsantanana na zavatra hafa any amin'ny fidirana na fivoahana amin'ny rivotra.
- Unplug the unit before cleaning, maintenance, or moving.
- Ity fitaovana ity dia tsy natao hampiasain'ny olona (anisan'izany ny ankizy) manana fahasahiranana ara-batana, ara-pihetseham-po na ara-tsaina, na tsy fahampian'ny traikefa sy fahalalana, raha tsy hoe nomena fanaraha-maso na toromarika mikasika ny fampiasana ny fitaovana avy amin'ny olona iray tompon'andraikitra amin'ny fiarovana azy ireo.
- Tokony hojerena ny ankizy mba hahazoana antoka fa tsy milalao amin'ny fitaovana izy ireo.
3. Vokatra mihoatraview ary Components

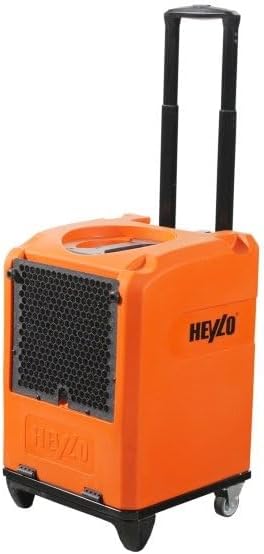

Figure 1: Heylo KT 20 Dehumidifier. This image shows the compact orange dehumidifier with its extendable black handle, black air intake grille on the side, and sturdy wheels for easy portability.
The Heylo KT 20 Dehumidifier is designed for portability and ease of use. Key components include:
- Takelaka fikirakirana: For setting operation modes and monitoring status.
- Grille fidirana rivotra: Where humid air enters the unit.
- Famoahana rivotra: Aiza no avoaka ny rivotra maina.
- Tank rano: Manangona rano mivaingana.
- Outlet fanariana: For continuous drainage option.
- Tantana azo avela: Ho mora fitaterana.
- Kodiarana: For mobility.
4. Fametrahana
- Famoahana: Esory tsara amin'ny fonosany ny fitaovana manala hamandoana. Tazomy ny fonosana mba hotehirizina na hotaterina amin'ny ho avy.
- Fametrahana: Place the unit on a firm, level surface in the area requiring dehumidification. Ensure there is at least 20 cm (8 inches) of clear space around all sides of the unit for proper airflow.
- Fampifandraisana herinaratra: Ampifandraiso amin'ny fivoahana elektrika mifanentana amin'ny tany ny tariby.
- Tank rano: Ensure the water tank is correctly inserted into the unit. If using continuous drainage, connect a suitable hose to the drainage outlet (hose not included).
5. Fampandehanana
5.1 Starting the Dehumidifier
- Press the Power button on the control panel to turn the unit ON.
- The unit will typically start in continuous dehumidification mode (as per specifications).
- Adjust desired humidity levels or fan speed using the control panel buttons, if available. Refer to the specific control panel layout on your unit.
5.2 Fitantanana ny Tanky Rano
- Fantsakan-drano: When the water tank is full, the unit will automatically shut off and an indicator light will illuminate. Carefully remove the water tank, empty it, and reinsert it firmly. The unit will resume operation.
- Fanariana tsy tapaka: For continuous operation without manual emptying, connect a standard garden hose (or similar) to the drainage outlet. Ensure the hose is sloped downwards to allow gravity drainage into a floor drain or larger container.
5.3 Stopping the Dehumidifier
Press the Power button to turn the unit OFF. Unplug the unit from the power outlet if it will not be used for an extended period.
6. Fikojakojana
Ny fikojakojana tsy tapaka dia miantoka ny faharetana sy ny fahombiazan'ny dehumidifier anao.
6.1 Fanadiovana ny sivana rivotra
- Ny sivana rivotra dia tokony hodiovina isaky ny tapa-bolana na mihoatra matetika arakaraka ny fampiasana sy ny kalitaon'ny rivotra.
- Vonoy ary esory ny fitaovana.
- Locate and remove the air filter (usually behind the air inlet grille).
- Sasao amin'ny rano mafana sy savony ny sivana. Kobanina tsara ary avela ho maina tanteraka alohan'ny hamerenana azy amin'ny laoniny. Aza mampiasa milina fanasana vilia.
6.2 Fanadiovana ny ivelany amin'ny fitaovana
- Fafao ny ivelan'ny fitaovana amin'ny malefaka, damp lamba.
- Aza mampiasa akora simika mahery vaika, mpanadio abrasive, na solvent.
6.3 Fitehirizana
- Raha mitahiry ilay fitaovana mandritra ny fotoana maharitra, dia ataovy izay hahazoana antoka fa foana sy madio ny fitoeran-drano.
- Diovy ny sivana rivotra.
- Store the unit upright in a cool, dry place, away from direct sunlight and extreme temperatures.
7. Famahana olana
| OLANA | Antony mety hitranga | vahaolana |
|---|---|---|
| Tsy mandeha ny unit. | Tsy misy hery; Tsy tafiditra ao ny tadin-jiro; Diso ny fivoahan'ny herinaratra. | Jereo ny fifandraisana herinaratra; Manandrama fivoahana hafa; Hamarino ny fiatoana. |
| Unit runs but no water collects. | Ambany loatra ny hamandoana; Ambany loatra ny mari-pana ao an-trano; Tsentsina ny sivana rivotra. | Increase target humidity (if adjustable); Ensure room temperature is above 5°C (41°F); Clean air filter. |
| Mijanona tsy miasa ny fitaovana. | Water tank full; Unit has reached desired humidity level; Frost build-up on coils. | Empty water tank; Unit will restart when humidity rises; Allow unit to defrost naturally (do not use sharp objects). |
| Mitabataba ny unit. | Tsy mitovy lenta ny fitaovana; Tsentsina ny sivana rivotra; Misy sakana ao amin'ny mpankafy. | Place on a level surface; Clean air filter; Check for obstructions (unplug first). |
Raha mbola mitohy ny olana rehefa avy nanandrana ireo vahaolana ireo dia mifandraisa amin'ny fanohanana mpanjifa.
8. Famaritana ara-teknika
| endri-javatra | famaritana |
|---|---|
| Anarana modely | Heylo KT 20 |
| mpanamboatra | Heylo |
| Laharan'ny entana | 1110579 |
| Fahaiza-manafoana | Up to 24 Liters per day |
| Volan'ny Tank Rano | 24 litatra |
| Fomba fiasa | Continuous Mode |
| loko | voasary |
9. Fampahalalana momba ny fiantohana
Please refer to the warranty card included with your product for detailed warranty terms and conditions. Typically, Heylo products come with a standard manufacturer's warranty covering defects in materials and workmanship from the date of purchase. Keep your proof of purchase for warranty claims.
This warranty does not cover damage caused by misuse, neglect, unauthorized repairs, or normal wear and tear.
10. Fanohanana ny mpanjifa
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Heylo customer support:
- Webtranokala: www.heylo.de (Please check the official Heylo webtranonkala hahazoana ny fampahalalana farany indrindra momba ny fifandraisana.)
- mailaka: Jereo ny website for specific contact emails.
- Telefaonina: Jereo ny webtranonkala ho an'ny laharan-telefaona manokana hifandraisana.
When contacting support, please have your model number (KT 20) and item number (1110579) ready.
