Generic X-ES30-4TBS 4TB SAS Enterprise Drive Instruction Manual

1. Fampidirana

This manual provides essential information for the proper installation, operation, and maintenance of the Generic X-ES30-4TBS 4TB SAS Enterprise Drive. This drive is specifically designed and formatted for use within Data Domain ES30-15 bay enclosures. Please read this manual thoroughly before proceeding with installation or operation.

2. Information momba ny fiarovana

Observe the following safety precautions to prevent damage to the drive, the enclosure, and to ensure personal safety:

• Always handle the drive by its edges or tray to avoid touching the circuit board or connectors.
• Ensure the Data Domain enclosure is powered off and disconnected from the power source before installing or removing any drives.
• Wear an anti-static wrist strap when handling the drive to prevent electrostatic discharge (ESD) damage.
• Do not expose the drive to moisture, extreme temperatures, or strong magnetic fields.
• Keep the drive in its anti-static packaging until ready for installation.

3. Inona no ao anaty boaty

Tokony ahitana ireto zavatra manaraka ireto ny fonosana:

• One (1) Enterprise Disk Drive in Tray

4. Famaritana

5. Fametrahana sy fametrahana

This drive is designed for hot-swappable installation in compatible Data Domain ES30-15 bay enclosures. Follow the manufacturer's guidelines for your specific Data Domain system when installing or replacing drives.

1. Omano ny Fefy: Ensure the Data Domain ES30-15 bay enclosure is in a state ready for drive installation or replacement. Consult your Data Domain system's documentation for specific procedures, which may include placing the system into a maintenance mode or ensuring proper power-down if not hot-swappable.
2. Sokafy ny Drive: Carefully remove the X-ES30-4TBS drive from its anti-static packaging. Handle it by the drive tray.
3. Identify Bay: Locate an empty drive bay or the bay designated for replacement in your Data Domain ES30-15 enclosure.
4. Ampidiro ny fiara: Slide the drive, mounted in its tray, into the empty bay until it is fully seated. Ensure the tray latch clicks into place, securing the drive. Do not force the drive; if it does not slide in smoothly, recheck alignment.
5. Hamarino ny fametrahana: After installation, power on the enclosure (if it was powered down) and monitor the system's status indicators. The Data Domain system should detect the new drive. Refer to your Data Domain system's management interface to confirm the drive is recognized and operating correctly. The drive is pre-formatted with Data Domain firmware.

Sary 1: Eo anoloana view of the X-ES30-4TBS drive in its tray, indicating SAS interface, 4TB capacity, and 7200 RPM speed.

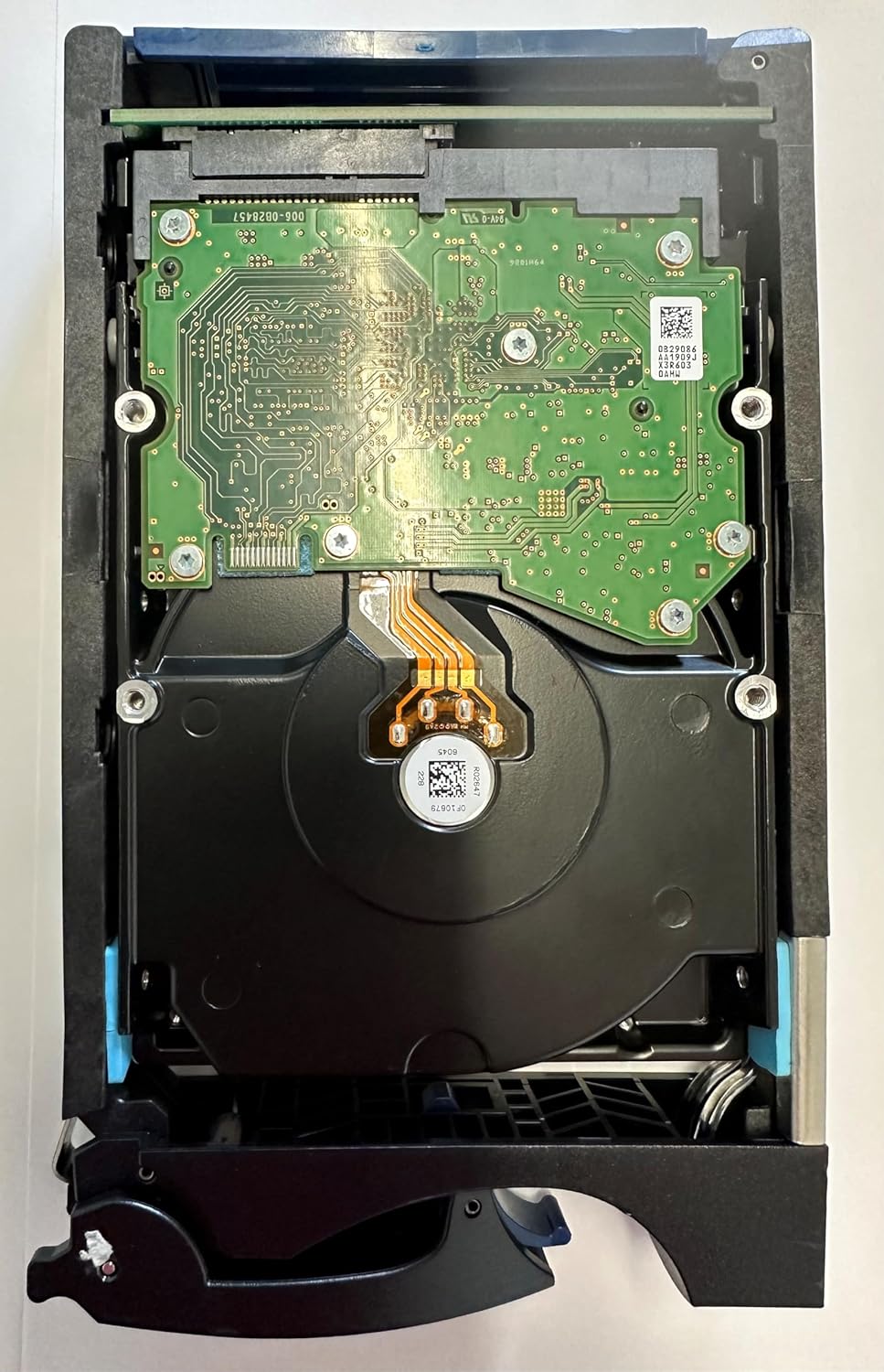

Sary 2: aoriana view of the X-ES30-4TBS drive, displaying the circuit board and SAS data/power connector.

6. Fiasana

Once installed and recognized by the Data Domain ES30-15 bay enclosure, the X-ES30-4TBS drive operates as an integral part of the storage system. The drive is pre-configured with Data Domain firmware, ensuring compatibility and optimal performance within the Data Domain environment.

• System Integration: The Data Domain operating system will manage the drive automatically for data storage, deduplication, and replication tasks.
• Fanaraha-maso: Monitor the drive's status and performance through the Data Domain system's management interface. This interface provides information on drive health, capacity usage, and any potential issues.
• Firmware: The drive comes with Data Domain specific firmware. Do not attempt to flash the drive with non-Data Domain firmware, as this may render the drive incompatible or inoperable within the enclosure.

7. Fikojakojana

Hard drives are sealed units and generally do not require user maintenance. However, proper environmental conditions and handling are crucial for longevity.

• Fanaraha-maso ny tontolo iainana: Ensure the Data Domain enclosure operates within its specified temperature and humidity ranges to prevent drive overheating or condensation.
• Fahadiovana: Keep the enclosure and surrounding area free from dust and debris, which can impede airflow and lead to overheating.
• Fikarakarana ara-batana: Avoid dropping or subjecting the drive to physical shocks, as this can cause permanent damage.

8. Famahana olana

If you encounter issues with the X-ES30-4TBS drive, consider the following troubleshooting steps:

• Fiara tsy fantatra:
  • Ensure the drive is fully seated in its bay.
  • Verify the enclosure is powered on and functioning correctly.
  • Check the Data Domain system's management interface for drive status and error messages.
  • If replacing a drive, ensure the old drive was properly removed and the bay is clean.
• Olana amin'ny Fahombiazana:
  • Check the Data Domain system's resource utilization. High system load can affect drive performance.
  • Ensure the enclosure's cooling system is operating effectively to prevent thermal throttling.
• Famantarana diso: If the Data Domain enclosure or the drive itself displays error lights, consult your Data Domain system's documentation for the meaning of these indicators.

If troubleshooting steps do not resolve the issue, contact technical support as outlined in the Warranty and Support section.

9. Warranty sy fanohanana

This X-ES30-4TBS Enterprise Drive is backed by a Garantie fanoloana herintaona. Ity fiantohana ity dia manarona ny lesoka amin'ny fitaovana sy ny asa amin'ny fampiasana mahazatra.

For warranty claims, technical assistance, or further inquiries, please contact the seller directly. Ensure you have your purchase details and the product model number (X-ES30-4TBS) available when contacting support.

All drives are professionally tested and certified by in-house technicians prior to shipment to ensure functionality and reliability.
