Boxer Truck Bed Cargo Unloader Instruction Manual

Sava lalana

Thank you for choosing the Boxer Truck Bed Cargo Unloader. This manual provides detailed instructions for the proper assembly, operation, and maintenance of your new unloader. Please read this manual thoroughly before installation and use to ensure safe and efficient operation. This unloader is designed for universal fitment on most pickup trucks and can handle up to 2,000 lbs of various materials.

Information momba ny fiarovana

• Ataovy azo antoka fa voafatotra tsara avokoa ny singa rehetra alohan'ny hampiasana azy.
• Aza mihoatra ny 2,000 lbs ambony indrindra.
• Avoid using sharp objects on the unloader tarp to prevent damage.
• Ensure the area behind the truck is clear before unloading cargo.
• Arovy amin'ny zavatra mihetsika ny tanana sy ny akanjo mandritra ny fampiasana.
• Store the unloader properly when not in use to prevent damage or injury.

Fonosana fonosana

Before beginning assembly, verify that all parts listed below are present and undamaged. Refer to the image for visual identification of each component.

Image: All components of the Boxer Truck Bed Cargo Unloader laid out on a truck bed with numbered labels for easy identification.

1. Bracket azo amboarina (2)
2. Tube Clamps (4)
3. Roller Bar Sections (2)
4. Handlebar
5. Adhesive Strips (2)
6. Drag Sheet/Tarp
7. Allen Wrench
8. Screws for Tarp Attachment (2)
9. Bumper Security Strap
10. Tady Velcro (2)
11. Boky torolàlana (torolàlana ity)

Fametrahana sy fametrahana

Follow these steps carefully to assemble and install your Boxer Truck Bed Cargo Unloader.

Step 1: Assemble Brackets

Image: A person assembling the adjustable bracket, showing the bolt and nut being attached to set the width.

Assemble the adjustable brackets to match the width of your truck's tailgate. Insert the bolt through the appropriate holes to achieve the correct width. Do not fully tighten the bolt at this stage.

Step 2: Attach Brackets to Tailgate

Image: The unloader brackets are attached to the top of the truck's tailgate, with the strap looped around for security.

Attach the assembled bracket to the top edge of your tailgate. Loop the security strap around the tailgate and adjust it for a snug fit. Once the strap is adjusted, fully tighten the bracket bolt to secure the bracket in place. Repeat for the opposite side.

Step 3: Install Roller Bar

Select the roller bar section with the handlebar opening. Slide one tube clamp onto this bar. Then, slide the bar into the bracket. Install the second tube clamp right after the bracket. Do not tighten the tube clamps just yet. Repeat this process for the opposite side of the tailgate. Connect the two roller bar sections together in the center. Ensure the two small holes on the bar are aligned and in the upright position; these holes will be used to connect the tarp. Apply the adhesive strips to the center of the bar where the two sections connect, ensuring a firm application. Center the entire bar assembly into place within the brackets and then tighten the screws on both tube clamps to lock the bar securely.

Step 4: Attach Tarp to Roller Bar

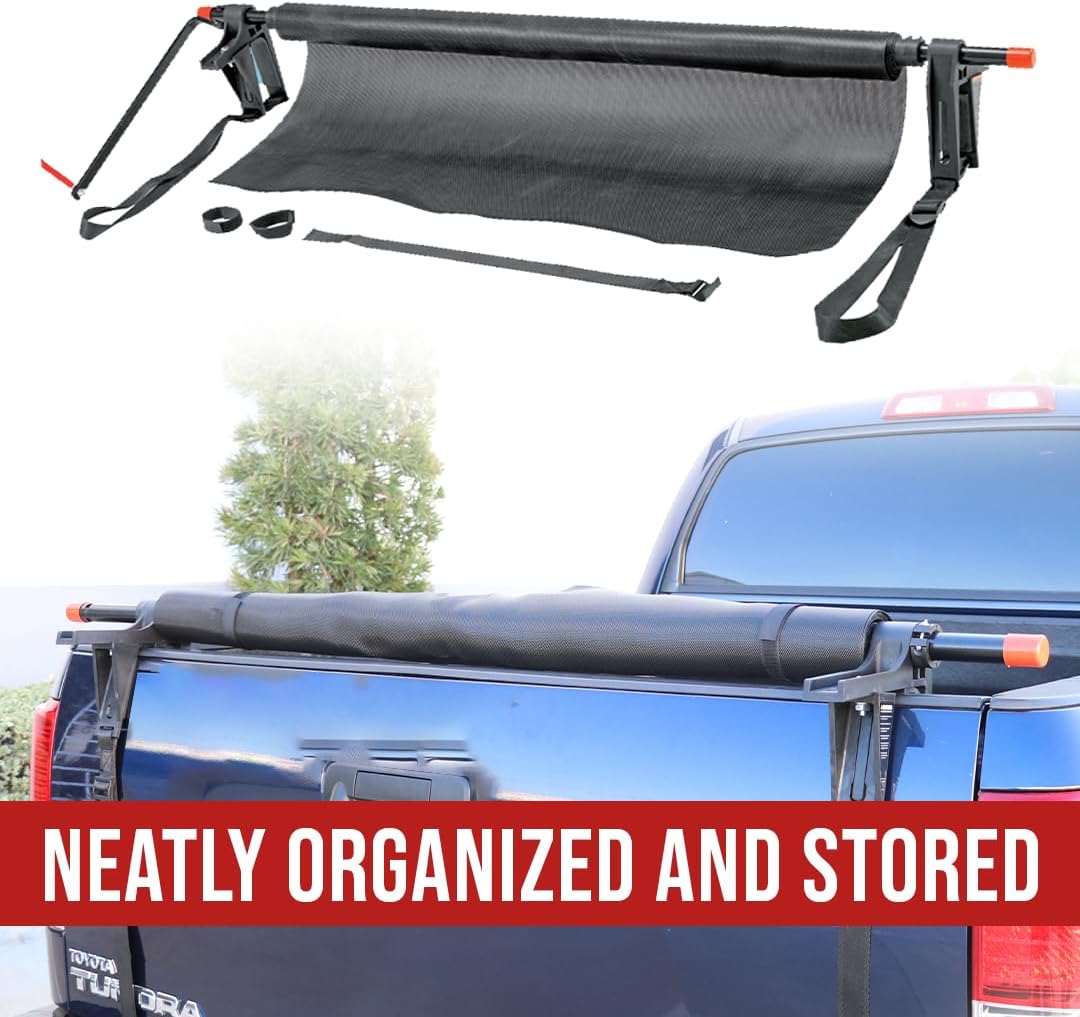

Image: The unloader tarp is neatly rolled up and secured against the tailgate, demonstrating proper storage.

Unravel the drag sheet/tarp. Locate the two holes at the end of the tarp. Align these holes with the corresponding holes on the roller bar. Use the provided screws and Allen wrench to securely attach the tarp to the roller bar. Repeat this step for both holes.

Dingana 5: Mametraka Handlebar

Grab the handlebar and slide it into the designated opening on the roller bar. This handlebar will be used to roll up the tarp.

Step 6: Secure Tarp (Storage)

When the unloader is not in use, roll up the tarp using the handlebar. Use the two velcro straps to hold the rolled-up tarp securely in place against the roller bar. This prevents the tarp from unraveling during transport or when not in use.

Step 7: Install Bumper Security Strap

The final step is to install the bumper security strap. Tighten the strap into the buckle located on the bracket strap. Then, place the hook end of the strap onto your truck's bumper and pull the strap to tighten it into place. This strap provides additional security for the unloader.

Torolàlana miasa

The Boxer Truck Bed Cargo Unloader is designed for efficient and easy operation.

• Loading: With the unloader installed and the tarp extended into the truck bed, load your desired cargo (dirt, mulch, stones, etc.) onto the tarp. Ensure the load is evenly distributed and does not exceed the 2,000 lbs maximum capacity.
• Famoahana: Once at your destination, lower your truck's tailgate. Simply turn the handlebar to roll the tarp, which will pull the cargo towards the tailgate and off the truck bed.
• fahafahana: The unloader has a maximum working capacity of 2,000 lbs. It is designed for light-duty everyday jobs.

Image: A large pile of mulch being unloaded from a truck bed using the Boxer Unloader, demonstrating its efficiency.

fikarakarana

Regular maintenance will ensure the longevity and optimal performance of your unloader.

• Fanadiovana: After each use, especially when transporting dirty materials, clean the tarp and roller bar. Use a damp lamba hamafa ny tafo.
• Fanaraha-maso: Periodically inspect all bolts, straps, and moving parts for wear or damage. Tighten any loose fasteners.
• fitahirizana: When not in use, roll up the tarp and secure it with the velcro straps. Store the unloader in a dry place to prevent rust or material degradation.

Fanamboarana

If you encounter any issues with your Boxer Truck Bed Cargo Unloader, refer to the following common problems and solutions:

• Tarp not rolling smoothly: Check for any obstructions in the truck bed or on the roller bar. Ensure the tarp is properly aligned and not bunched up. Verify that the roller bar clamps are not overtightened, allowing the bar to rotate freely.
• Unloader feels loose on tailgate: Re-check the tightness of the bracket bolts and the tailgate security straps. Ensure the brackets are adjusted to the correct width for your tailgate.
• Difficulty attaching tarp to roller bar: Ensure the holes on the tarp are perfectly aligned with the holes on the roller bar. Use the Allen wrench to properly secure the screws.

fepetra arahana

Garantie

Please refer to the product packaging or the official Boxer Tools website for specific warranty information regarding your Truck Bed Cargo Unloader. Keep your proof of purchase for any warranty claims.

MANAMPY

If you have any questions, require assistance with assembly, or need troubleshooting support not covered in this manual, please contact Boxer Tools customer service. Contact information can typically be found on the product packaging or the official Boxer Tools website.
