Aicevoos G600B Infrared Thermometer Gun User Manual

1. Fampidirana

This manual provides instructions for the safe and effective use of the Aicevoos G600B Infrared Thermometer Gun. This device is designed for non-contact surface temperature measurement of inanimate objects. It is suitable for various applications including cooking, grilling, automotive repairs, and home maintenance.

The G600B features a laser pointer for precise targeting, adjustable emissivity for improved accuracy, and a backlit LCD for clear readings.

Image 1.1: The Aicevoos G600B Infrared Thermometer in use, demonstrating non-contact temperature measurement of food. The device features a digital display and a laser pointer.

2. Information momba ny fiarovana

WARNING: This infrared thermometer is NOT designed for measuring human or animal body temperature. Temperature readings from this device are for inanimate objects only.

• Laser fiarovana: The built-in laser is a Class 2 laser product with a maximum output of less than 1mW. Do not stare directly into the laser beam or point it at people or animals. Avoid direct eye exposure.
• Tontolo iainana miasa: Do not use the thermometer in environments with explosive gas, vapor, or dust.
• Fikojakojana: Aza manandrana manongotra na manamboatra ilay fitaovana. Alefaso amin'ny mpiasa mahay ny serivisy rehetra.
• Fiarovana ny bateria: Ensure correct battery polarity when installing. Do not mix old and new batteries or different types of batteries. Remove batteries if the device will not be used for an extended period.

Image 2.1: A visual warning indicating that the infrared thermometer is not suitable for measuring the temperature of humans or animals.

3. Toetran'ny vokatra

• Fandrefesana tsy misy fifandraisana: Safely measure surface temperatures without physical contact.
• Wide Temperature Range: Mirefy manomboka amin'ny -58°F hatramin'ny 1112°F (-50°C hatramin'ny 600°C).
• Adjustable Emissivity: Emissivity range of 0.1 to 1.0 for accurate readings on various surfaces.
• Laser mikendry: Built-in laser for precise aiming at the measurement spot.
• Fampisehoana LCD backlit: Clear digital display for easy reading in various lighting conditions.
• Fifantenana vondrona: Switch between Celsius (°C) and Fahrenheit (°F).
• Auto-off Function: Automatically powers off to conserve battery life.
• Famantarana ny bateria ambany: Fanairana rehefa mila soloina ny bateria.
• High Accuracy: Provides reliable temperature measurements with an accuracy of ±1.5°C.

Image 3.1: The Aicevoos G600B Infrared Thermometer showcasing its accuracy of ±1.5°C, with a visual representation of its high-precision sensor.

Image 3.2: The HD color screen of the Aicevoos G600B Infrared Thermometer, demonstrating its readability even in low-light conditions due to its backlight function.

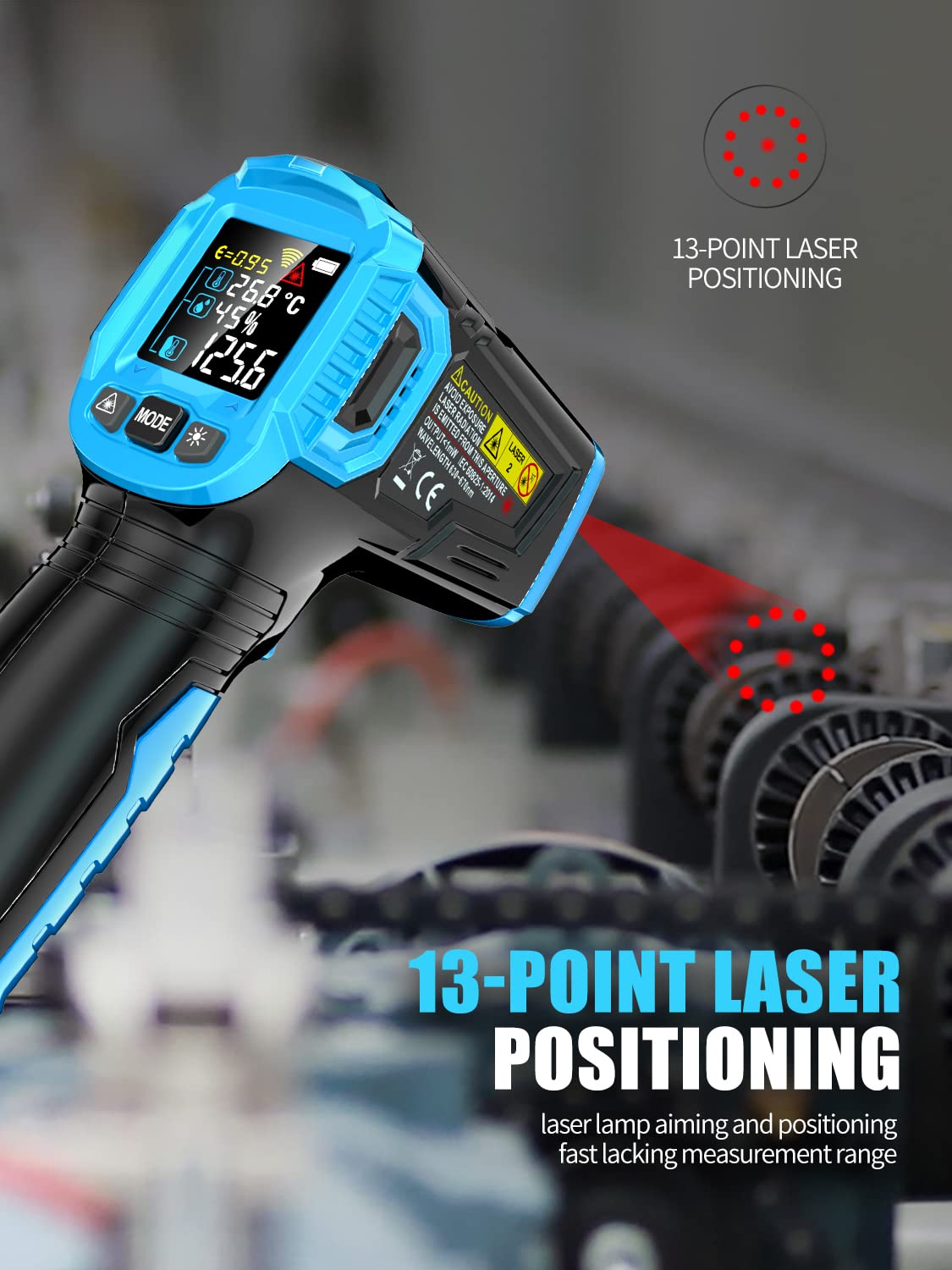

Image 3.3: The Aicevoos G600B Infrared Thermometer illustrating its 13-point laser positioning system for accurate targeting of the measurement area.

4. Fametrahana

4.1 Fametrahana bateria

1. Tadiavo eo amin'ny farany ambany amin'ny tahony ny fonon'ny fitoeran-bateria.
2. Gently slide or open the cover to access the battery compartment.
3. Insert two (2) 1.5V AAA batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Akatona tsara ny saron'ny efitrefitra bateria.

Fanamarihana: Tsy tafiditra ao anatin'ny vokatra ny bateria ary tsy maintsy vidiana mitokana.

Image 4.1: A diagram illustrating the process of opening the battery compartment and inserting two AAA batteries into the Aicevoos G600B Infrared Thermometer.

5. Torolàlana miasa

5.1 Mandray refy

1. Point the thermometer at the object you wish to measure.
2. Press and hold the trigger. The laser pointer will activate, indicating the measurement area.
3. Haseho eo amin'ny efijery LCD ny mari-pana voarefy.
4. For best accuracy, maintain a distance of approximately 14.17 inches (36 cm) from the object.
5. Release the trigger to hold the reading on the display. The device will automatically turn off after a period of inactivity to save battery.

5.2 Fanitsiana ny Emissivity

Emissivity (ε) is a measure of an object's ability to emit infrared energy. Different materials have different emissivity values. Adjusting the emissivity setting on your thermometer ensures more accurate readings.

1. Tsindrio ny bokotra 'MODE' mba hidirana amin'ny fomba fanitsiana ny emissivity.
2. Use the up/down arrow buttons (if available, or repeated 'MODE' presses) to adjust the emissivity value between 0.1 and 1.0.
3. Refer to a standard emissivity table for common materials to set the appropriate value. For example, most organic materials and painted surfaces have an emissivity of 0.95.
4. Press the trigger to confirm the setting and return to measurement mode.

5.3 Singa miovaovan'ny mari-pana (°C/°F)

To switch between Celsius and Fahrenheit, locate the unit selection button (often integrated with the 'MODE' button or a dedicated button) and press it. The display will change accordingly.

6. Fikojakojana

• Fanadiovana: Fafao madio amin'ny lamba malefaka ny fitaovanaamp lamba. Aza mampiasa mpanadio abrasive na solvents.
• Fikarakarana Lens: The infrared lens is a delicate part. Clean it gently with a soft cloth or cotton swab, using only water or rubbing alcohol if necessary. Avoid touching the lens with bare fingers.
• fitahirizana: Tehirizo ao amin'ny toerana mangatsiaka sy maina ny termometra, lavitry ny tara-masoandro mivantana sy ny mari-pana tafahoatra.
• Fanoloana bateria: Soloy ny bateria rehefa miseho eo amin'ny efijery ny famantarana ny bateria ambany.

7. Famahana olana

• Tsy misy hery: Check if batteries are installed correctly and have sufficient charge. Replace batteries if necessary.
• Famakiana tsy marina: Ensure the emissivity setting is appropriate for the material being measured. Verify the distance to spot ratio is within recommended range. Clean the infrared lens if it appears dirty.
• Tsy miasa ny laser: Check battery level. If the laser is still not functioning, contact customer support.
• Olana amin'ny fampisehoana: If the display is dim or flickering, replace the batteries. If the issue persists, contact customer support.

8. Famaritana

9. Warranty sy fanohanana

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Aicevoos webtranonkala. Azafady mba omeo ny laharan'ny modely (G600B) sy ny daty nividiananao rehefa mifandray amin'ny fanohanana.
