Beyamis Full Size Canopy Platform Bed with Trundle - Instruction Manual

1. Vokatra mihoatraview

This manual provides instructions for the Beyamis Full Size Canopy Platform Bed with Trundle. This bed frame is designed for a full-size mattress and includes a pull-out trundle bed for additional sleeping space. It features a canopy structure and a sturdy wood construction.

Image 1.1: Fully assembled Beyamis Full Size Canopy Platform Bed with the trundle extended, showcasing ny endriny sy ny fiasany.

2. Torolàlana momba ny fiarovana

• Vakio tsara ny toromarika rehetra alohan'ny hanangonana sy hampiasaina.
• Arovy tsy ho azon’ny ankizy ny fitaovana rehetra sy ny kojakoja madinika.
• Ataovy azo antoka fa henjana tsara ny fifandraisana rehetra alohan'ny hampiasana azy. Jereo tsy tapaka ary henjano indray raha ilaina.
• Aza mampiasa fitaovana elektrika rehefa manambatra raha tsy misy toromarika manokana, satria mety hanenjana loatra izany na hanimba ireo singa.
• Apetraho eo amin'ny toerana fisaka ny fandriana.
• Aza avela hilalao eo ambony na eo ambanin'ny fandriana ny ankizy raha tsy misy fanaraha-maso.
• Maximum weight capacity for the upper bed is 250 lbs. Do not exceed this limit.

3. Component Checklist

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

• Headboard Panel
• Bed Frame Rails (Side, Front, Back)
• Canopy Posts and Rails
• Bed Slats (for main bed and trundle)
• Trundle Frame and Wheels
• Support Legs (for main bed and trundle)
• Fonosana fitaovana (visy, visy, voanjo, lakile Allen)
• Torolàlana ho an'ny Fivoriambe

Image 3.1: An exploded diagram illustrating all individual components of the bed frame and trundle, including the headboard, side rails, canopy posts, slats, and trundle unit.

4. Torolàlana momba ny fivoriambe

Assembly of the Beyamis Full Size Canopy Platform Bed with Trundle requires two adults. Follow the detailed step-by-step instructions provided in the included assembly guide. All necessary tools are typically provided within the hardware pack.

Dingana amin'ny fivoriambe:

1. Esory ary fantaro: Carefully unpack all components and compare them against the component checklist.
2. Mamorona ny loha-pandriana sy ny tongotra: Attach the headboard panel to the main bed frame posts.
3. Construct Main Bed Frame: Connect the side rails to the headboard and footboard sections.
4. Mametraka ireo takelaka fandriana lehibe: Securely attach the wooden slats to the main bed frame. Ensure even spacing and proper support.
5. Assemble Trundle Unit: Construct the trundle frame, attach the wheels, and install its slats.
6. Attach Canopy Posts and Rails: Secure the vertical canopy posts to the main bed frame, then connect the top canopy rails.
7. Fanamafisana farany: Once all parts are assembled, carefully tighten all bolts and screws. Do not overtighten.

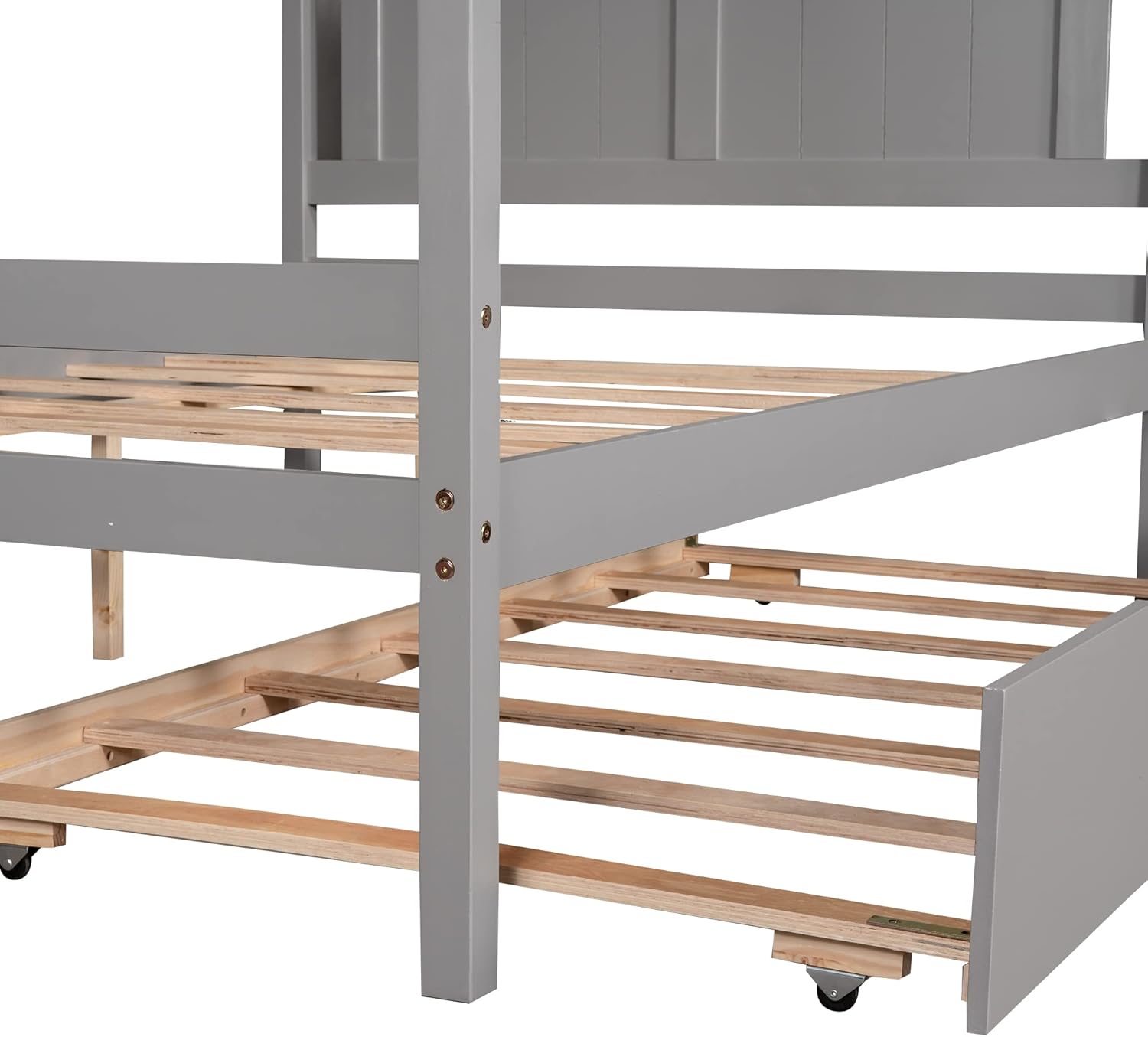

Sary 4.1: Antsipiriany view of the headboard and the wooden slats that support the main mattress, illustrating the construction.

Sary 4.2: Antsipiriany view of the trundle unit, showing its frame, slats, and integrated wheels for easy movement.

5. Fampiasana sy Fampandehanana

Main Bed:

Place a full-size mattress directly onto the wooden slats. No box spring is required. The canopy frame can be used for decorative purposes, such as hanging curtains or lights (ensure decorations are lightweight and securely attached).

Fandriana Trundle:

The trundle bed is designed to slide smoothly from underneath the main bed. To use, gently pull the trundle unit out until it is fully extended. Place a suitable mattress (typically thinner than the main mattress) onto the trundle slats. To store, remove the mattress if necessary, and push the trundle unit back under the main bed until it is fully recessed.

Sary 5.1: lafiny view of the Beyamis bed frame with the trundle unit completely stored underneath the main bed, demonstrating its compact form.

6. Fikarakarana sy fikojakojana

• Fanadiovana: Fafao amin'ny lamba malefaka ny rafitry ny fandrianaamp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the finish.
• Vovoka: Fafao tsy tapaka ny vovoka eo amin'ny rafitra mba hisorohana ny fiangonan'ny vovoka.
• Fanamarinana fitaovana: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as needed to maintain stability and prevent squeaking.
• Ilao ny hamandoana be loatra: Protect the wood from prolonged exposure to moisture.
• Fiposahan'ny masoandro: Avoid placing the bed in direct sunlight for extended periods, as this may cause fading or warping.

7. Famahana olana

Mikiakiaka:

If the bed frame produces squeaking noises, check all connections. Loosen and then re-tighten all bolts and screws. Ensure the bed is on a level surface. If the issue persists, verify that all slats are properly seated and not rubbing against the frame.

Tsy Mikorisa Mora ny Trundle:

Check the trundle wheels for any obstructions or debris. Ensure the wheels are properly attached and not damaged. Verify that the floor surface is clear and level.

Rafitra mihozongozona:

A wobbly frame usually indicates loose connections. Re-check and tighten all hardware throughout the entire bed frame and canopy structure.

8. Product Specifications

Image 8.1: Technical drawing displaying all key dimensions of the bed frame and trundle unit, including length, width, and height measurements.

9. Fanohanana ny mpanjifa

If you encounter any issues during assembly or use, or if you have questions regarding your Beyamis Full Size Canopy Platform Bed with Trundle, please refer to the contact information provided with your purchase documentation. Our customer service team aims to respond within 12 hours to assist you.

Information momba ny fiantohana: Specific warranty details are typically included with your product packaging. Please retain your proof of purchase for any warranty claims.
