Xprite Blue LED Emergency Strobe Lights Kit (10-Piece)

Sava lalana

Thank you for choosing the Xprite Blue LED Emergency Strobe Lights Kit. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new strobe lights. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

This kit is designed to enhance vehicle visibility for emergency services, public safety, and volunteer vehicles, featuring high-intensity blue LEDs for clear signaling.

Information momba ny fiarovana

Esory foana ny bateria-n'ny fiara alohan'ny hanombohana fametrahana herinaratra.
Hamarino tsara fa voafehy tsara ny fifandraisana rehetra amin'ny tariby ary tsy misy tariby miraikitra mba hisorohana ny "court-circuit".
Verify local and provincial/state laws regarding the use of emergency vehicle lighting before installation and operation. Misuse may result in fines or legal action.
Do not stare directly into the LED lights when they are active, as this may cause temporary vision impairment.
Mount lights securely to prevent detachment during vehicle operation.

Fonosana fonosana

The Xprite Blue LED Emergency Strobe Lights Kit includes the following components:

10 x Blue LED Strobe Light Modules
Mounting Gaskets (10 pieces)
Screws (20 sekely)
Wiring Harness (integrated with each module)

Components of the Xprite Blue LED Emergency Strobe Lights Kit, showing a light module, gasket, screws, and wiring. — Figure 1: Kit components including LED module, gasket, screws, and wiring.

fepetra arahana

endri-javatra	famaritana
Laharana modely	52026S-12-B-10PC
Naoty mandritra ny androm-piainany	Maherin'ny 50,000 ora
Operating Voltage	10-30VDC
Number of LEDs per Module	12 LED
Strobe Patterns	18 Flash Patterns (with last pattern memory)
Ny halavan'ny tariby	8.2 ft (tokony ho 2.5 metatra)
Module Dimensions (L x W)	3.99 in x 1.11 in (approx. 10.1 cm x 2.8 cm)
Fitaovana Lens	Acrylic
Endri-javatra manokana	Waterproof, Shock and Vibration Resistant

Detailed product specifications including dimensions, voltage, and LED count for the Xprite strobe light module. — Figure 2: Product specifications and dimensions.

Fametrahana (Fametrahana)

The Xprite LED Strobe Lights are designed for flush or surface mounting. Follow these steps for proper installation:

Mifidiana toerana fametrahana: Select a flat, secure surface on your vehicle's grille, bumper, or other suitable area. Ensure the location allows for optimal light visibility and does not obstruct vehicle functions.
Marka fandavahana: Place the light module with its gasket on the chosen surface and mark the two screw hole locations.
Fandavahana lavaka (Drill Pilot Hole): Using an appropriate drill bit size for the provided screws, drill pilot holes at the marked locations. For flush mounting, you may need to cut an opening for the light body to sit recessed.
Ataovy azo antoka ny môdioly: Position the gasket and light module over the pilot holes. Secure the module using the provided mounting screws. Do not overtighten.
Repeat for all Modules: Install all 10 light modules following the same procedure.

Various vehicles including trucks, SUVs, and motorcycles with Xprite strobe lights installed, demonstrating broad application. — Sary 3: Eksamples of broad application and mounting locations on different vehicles.

Kisarisary sy fifandraisana amin'ny tariby

Each strobe light module has five wires for connection. Proper wiring is crucial for functionality and pattern synchronization.

Tady mena: Positive (+) power input (10-30V DC). Connect to a fused 12V/24V power source.
tariby mainty (Black Wire): Negative (-) ground. Connect to a reliable chassis ground point.
Tady mavo: Pattern Change. Briefly touch this wire to the Red (Positive) wire to cycle through the 18 flash patterns.
Wire fotsy: Synchronization (Sync). Connect the White wires of all modules together to synchronize their flash patterns.
Gray Wire: Solid / Steady Mode. Connect this wire to the Red (Positive) wire to activate a steady-on light mode. Disconnect for strobe patterns.

Fanamarihana manan-danja momba ny tariby:

Ensure all connections are soldered or crimped securely and protected with heat shrink tubing or electrical tape.
Ampiasao tariby fandrefesana sahaza ho an'ny fampiharanao mba hisorohana ny hafanana be loatra.
Consider installing an inline fuse (not included) on the main positive power line for added protection.

Close-up of the Xprite strobe light wiring, showing red for positive, black for negative, yellow for pattern change, white for sync, and gray for solid/steady mode. — Figure 4: Wiring color code for the strobe light modules.

hetsika

Once properly installed and wired, operate your Xprite LED Strobe Lights as follows:

Herim-batana / maty: Apply 10-30V DC power to the Red (+) and Black (-) wires to turn the lights on. Disconnect power to turn them off.
Change Flash Patterns: Briefly touch the Yellow wire to the Red (Positive) wire. Each brief touch will advance to the next of the 18 available flash patterns. The lights feature a last pattern memory function, recalling the last selected pattern when powered on.
Fandrindrana: If multiple modules are connected via their White (Sync) wires, they will flash in unison according to the selected pattern.
Solid/Steady Mode: To activate a continuous, non-flashing light, connect the Gray wire to the Red (Positive) wire. Disconnect the Gray wire from the Red wire to return to strobe patterns.

Image illustrating 18 strobe patterns with last pattern memory, including steady, random, and alternating modes. — Figure 5: The 18 available strobe patterns and memory function.

A single Xprite blue LED strobe light module, highlighting its super bright output with 12 high-intensity LED chips and flood lens for maximum coverage, visible day or night. — Figure 6: High visibility of the LED modules.

fikarakarana

The Xprite LED Strobe Lights are designed for durability and require minimal maintenance. Follow these guidelines to ensure long-lasting performance:

Fanadiovana tsy tapaka: Periodically clean the lens of the light modules with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the lens.
Jereo ny tariby: Annually inspect all wiring connections for signs of wear, corrosion, or damage. Repair or replace any compromised wiring immediately.
Jereo ny fametrahana: Ensure all mounting screws remain tight and the modules are securely fastened to the vehicle. Retighten if necessary.
Tsy mahatanty rano: While the lights are waterproof, avoid directing high-pressure water jets directly at the modules during vehicle washing, especially at close range.

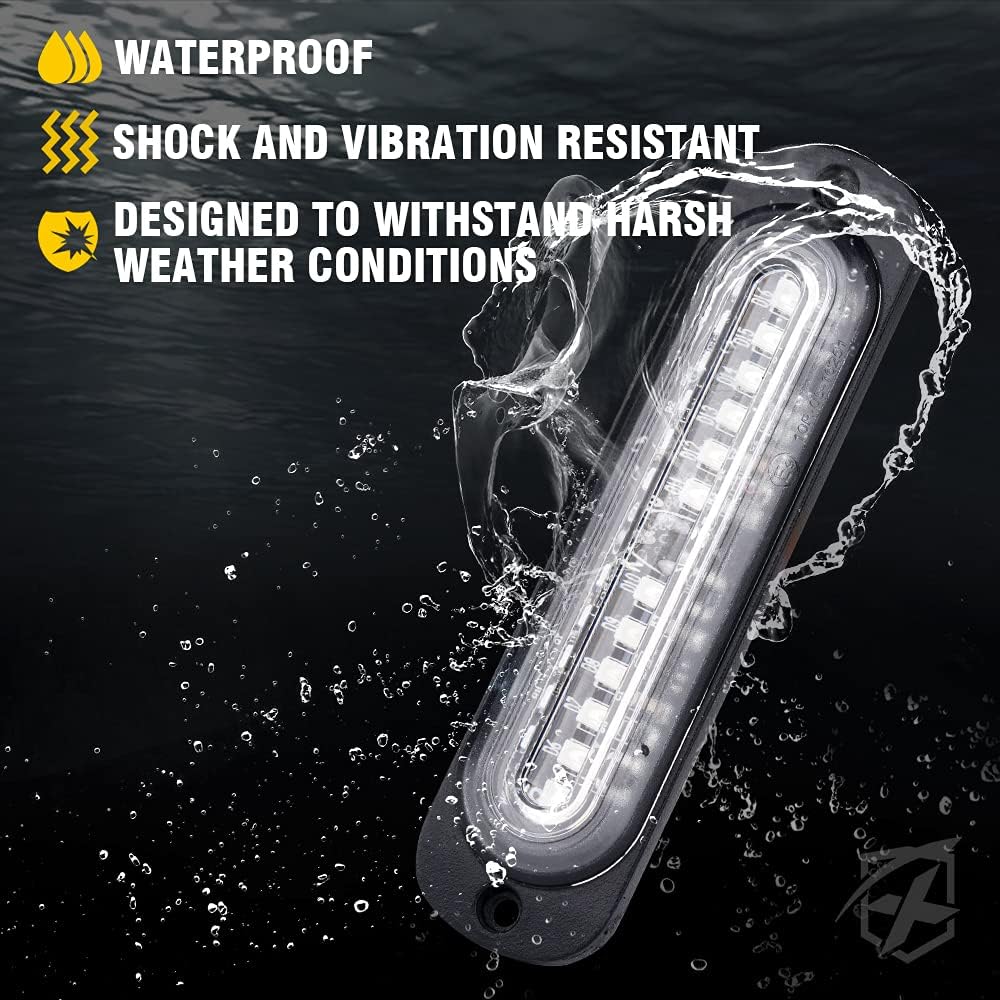

Xprite strobe light module being splashed with water, demonstrating its waterproof, shock, and vibration resistant design for harsh weather conditions. — Figure 7: The robust, waterproof design of the strobe lights.

Fanamboarana

OLANA	Antony mety hitranga	vahaolana
Tsy mirehitra ny jiro.	No power, incorrect wiring, blown fuse.	Check power connection (Red wire), ground connection (Black wire), and vehicle fuse. Ensure voltage is within 10-30V DC.
Lights do not change patterns.	Yellow wire not connected or faulty, Gray wire connected to positive.	Ensure Yellow wire is briefly touched to positive. Disconnect Gray wire from positive if it's in solid mode.
Lights are not synchronized.	White (Sync) wires not properly connected between modules.	Verify all White wires are securely connected together.
Moisture inside the light module.	Seal compromise, extreme temperature changes.	While lights are waterproof, prolonged exposure to high-pressure water or extreme conditions can sometimes affect seals. Inspect for physical damage. If persistent, contact support.

Warranty sy fanohanana

Xprite products are designed for quality and performance. For warranty information, technical support, or replacement parts, please refer to the official Xprite webtranokala na mifandray mivantana amin'ny serivisy mpanjifany. Tehirizo ny tapakila fividiananao ho porofon'ny fividianana.

Raha mila fanampiana fanampiny dia tsidiho: www.xpriteusa.com

Xprite 52026S-12-B-10PC

Xprite Blue LED Emergency Strobe Lights Kit (10-Piece) - Instruction Manual
